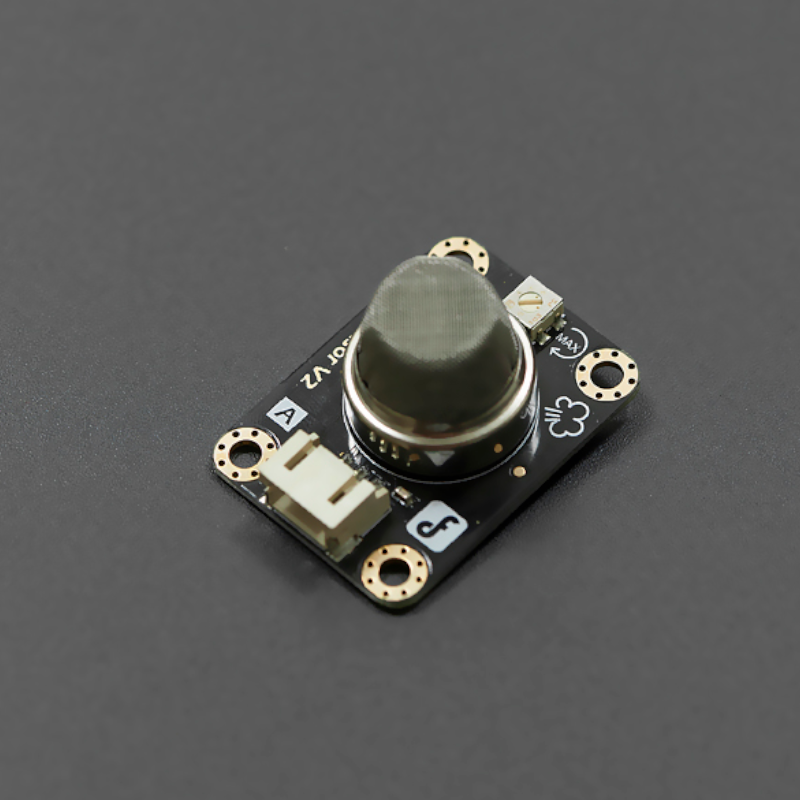

Módulo Sensor Analógico de Gás Hidrogénio (MQ-8)

:SEN08066
9,80 €
preço com IVA incluído

Este é um sensor de gás hidrogênio para Arduino. Tem alta sensibilidade ao hidrogênio (H2) e menos sensibilidade ao álcool, GLP, fumos de cozinha. A sensibilidade deste sensor pode ser ajustada pelo seu potenciômetro.

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page. Para conheceres toda a gama de sensores da DFRobot consulta o Guia de Seleção.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

This is an Arduino hydrogen gas sensor. It has high sensitivity to Hydrogen (H2) and less sensitivity to alcohol, LPG,cooking fumes. Hydrogen gas is highly flammable and will burn in air at a very wide range of concentrations.

The sensitivity is able to be adjusted by the potentiometer.  The output is proportional to the density of gas. You can use analog reading to read the data from this sensor.

To ease the difficulty of using this sensor, a Gravity Interface is adapted to allow plug&play. The Arduino IO expansion shield is the best match for this senor connecting to your Arduino microcontroller

What is Hydrogen? Hydrogen is a chemical element with chemical symbol H and atomic number 1.



Specification

  1. Power supply needs: 5V

  2. Interface type: Analog

  3. Pin Definition:  1-Output  2-GND  3-VCC

  4. High sensitivity to Hydrogen (H2)

  5. Small sensitivity to alcohol, LPG,cooking fumes

  6. Stable and long life

  7. Size: 40x20mm(1.57"x0.79")



Documents



Shipping List

  1. Arduino Hydrogen Gas Sensor (MQ8) x1

SEN08066
