Gravity: Sensor de Cloro CL2 (Calibrado) - I2C & UART

:SEN08070
121,87 €

Este sensor detecta a concentração de cloro e tem três tipos de saídas: I2C, UART e analógica, sendo compatível com Arduino, ESP32, Raspberry PI, etc. Este sensor já vem calibrado de fábrica, o que te permite medir com rapidez e precisão a concentração de cloro no ambiente.

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page. Para conheceres toda a gama de sensores da DFRobot consulta o Guia de Seleção.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

This is a sensor that detects chlorine concentration and supports three output modes: analog, I2C, and UART. The probe has been calibrated at the factory, which can quickly and accurately measure the concentration of chlorine in the environment. Can be widely used in the detection of chlorine in the chemical, pharmaceutical production, and environmental protection fields.

The probe adopts the electrochemical principle, has the characteristics of strong anti-interference ability, high stability, high sensitivity, etc., and the service life is as long as two years. The sensor has 32 modifiable I2C addresses, an integrated temperature compensation algorithm, and a threshold alarm function, It has good compatibility with mainstream main control devices such as Arduino, ESP32, Raspberry PI . The easy-to-use Gravity interface, coupled with our sample code, can quickly build a chlorine concentration detector.

DFRobot has introduced 12 gas detection sensors in this series, CO, O2, NH3, H2S, NO2, HCL, H2, PH3, SO2, O3, CL2, HF, which are used in exactly the same way and data format, so you can combine them according to your needs.

Gravity: CL2 Sensor (Calibrated) - I2C & UART



Features

  1. Strong anti-interference ability

  2. High stability

  3. High sensitivity



Applications

  1. Chemical chlorine detection

  2. pharmaceutical production chlorine detection

  3. Environmental protection device



Specification

  1. Detection Gas: Chlorine (CL2)

  2. Detection range: 0~10ppm

  3. Working Voltage: 3.3~5.5V DC

  4. Working Current: <5mA

  5. Output Signal: I2C, UART (0~3V), analog voltage

  6. Working Temperature: -20~50℃

  7. Working Humidity: 15~90%RH (non-condensing)

  8. Storage Temperature: -20~50℃

  9. Storage Humidity: 15~90%RH (non-condensing)

  10. Lifespan: >2 years (in the air)

  11. Adapter Plate Size: 37*32mm

  12. Compatibility: Arduino, ESP32, Raspberry pi



Documents

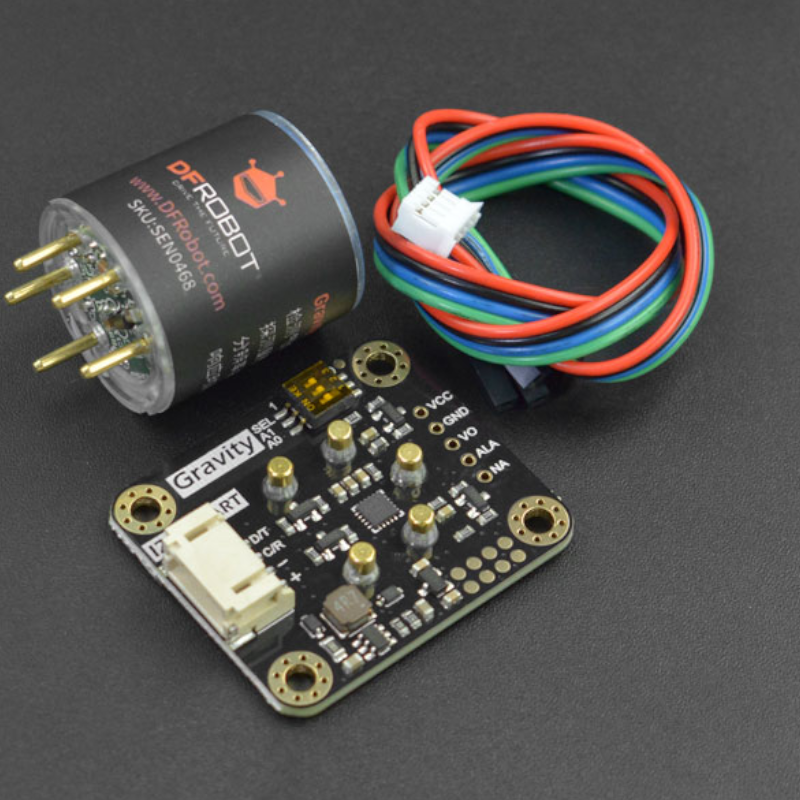

Shipping List

  1. Gravity: Chlorine Signal Conversion Board x1

  2. Chlorine sensor probe x1

  3. Gravity - 4pin Cable x1

SEN08070
