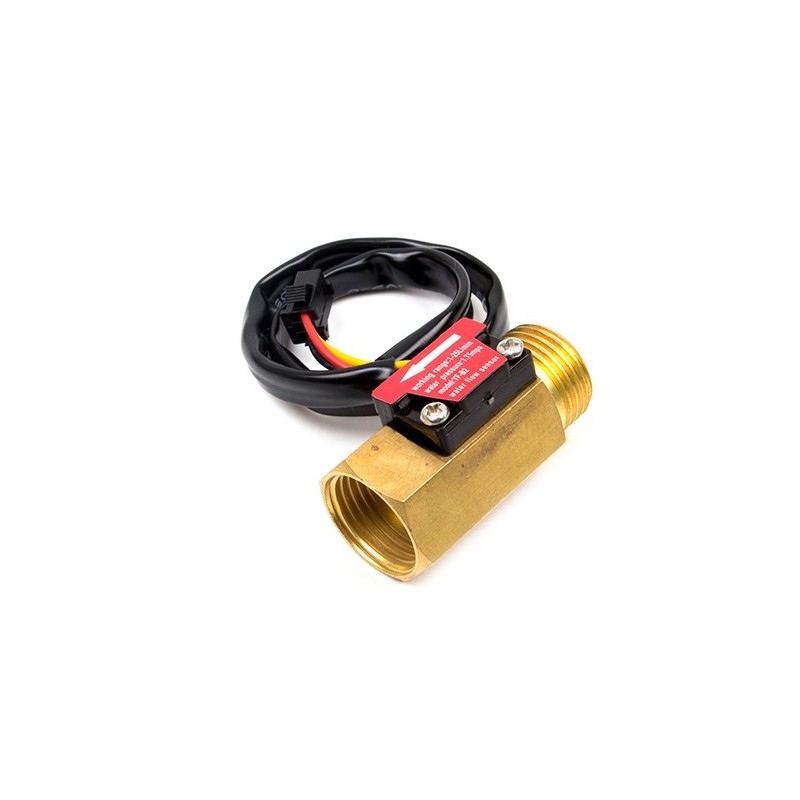

Sensor caudal de água 1/2" - YF-B2

:SEN08032
7,40 €
preço com IVA incluído

Sensor de caudal de água de 1/2" M/F para caudais máximos de 25L/min. Pressão máxima: 1,75Mpa.

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

Water flow sensor consists of a copper body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.

Life is longer than plastic body.

Features

·Compact, Easy to Install

·High Sealing Performance

·High Quality Hall Effect Sensor

·RoHS Compliant

Specifications

·Mini. Wokring Voltage: DC 4.5V

·Max. Working Current: 15mA (DC 5V)

·Working Voltage: DC 5V~15V

·Flow Rate Range: 1~25L/min

·Frequency:  F=11*Q(Q=L/MIN)

·Load Capacity: ≤10mA (DC 5V)

·Operating Temperature: ≤80℃

·Liquid Temperature: ≤120℃

·Operating Humidity: 35%~90%RH

·Water Pressure: ≤1.75MPa

·Storage Temperature: -25~+ 80℃

·Storage Humidity: 25%~95%RH


Part List

1 x YF-B2 water flow sensor



Technical Details

Weight G.W 98.5g    N.W 98.5g
Battery Exclude
Mini. Wokring Voltage DC 4.5V
Max. Working Current 15mA (DC 5V)
Working Voltage DC 5V~15V
Flow Rate Range 1~25L/min
Frequency F=11*Q(Q=L/MIN)
Load Capacity ≤10mA (DC 5V)
Operating Temperature ≤80℃
Liquid Temperature ≤120℃
Operating Humidity 35%~90%RH
Water Pressure ≤1.75MPa
Storage Temperature -25~+ 80℃
Storage Humidity 25%~95%RH
SEN08032
