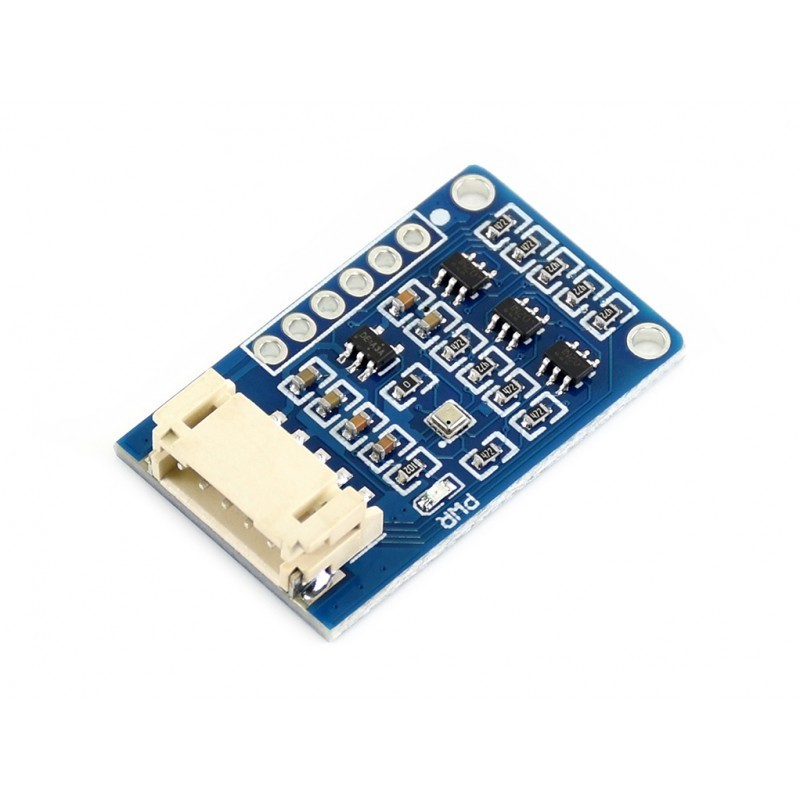

Sensor de Pressão Atmosférica BMP388 de alta precisão - WS

:SEN12007
12,60 €
preço com IVA incluído

Este é um sensor de pressão barométrica de alta precisão de 24 bits, que permite o rastreamento preciso da altitude, bem como a medição barométrica de pressão/temperatura. Ele suporta interfaces I2C e SPI, também é compatível com níveis de tensão de 3.3V/5V.

Quantidade

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Overview

This is a 24-bit high precision barometric pressure sensor, which allows accurate altitude tracing, as well as barometric pressure / temperature measuring. It supports both I2C and SPI interfaces, also is compatible with 3.3V/5V voltage levels.

Due to its ultra small form factor, low power consumption, low noise and high precision, the BMP388 Barometric Pressure Sensor is suited for applications such as drones, accurate altimeter, environment monitoring, and IoT projects, and so on.

Features

  • Supports I2C (default) / SPI interface
  • Onboard voltage level translator, compatible with 3.3V/5V operating voltage
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Operating voltage: 3.3V/5V
  • Communication interface: I2C/SPI
  • Barometric pressure operation range: 300~1250hPa
  • Barometric pressure absolute accuracy: ±0.40hPa (@900~1100hPa, 25~40℃)
  • Barometric pressure relative accuracy: ±0.08hPa (@900~1100hPa, 25~40℃)
  • Temperature coefficient offset: ±0.75Pa/K (@700~1100hPa, -20~65℃))
  • Temperature absolute accuracy: ±0.5℃ (0~65℃)
  • Possible resolution: 0.016Pa (high precision mode)
  • Possible sampling rate: 200Hz
  • Operating voltage: -40~85℃
  • Dimension: 32mm × 20mm
  • Mounting hole size: 2.0mm

Pinouts

PIN I2C
VCC 3.3V/5V power supply
GND Ground
SDA I2C data
SCL I2C clock
INT Interrupt output, can be connected to I/O

Dimensions

BMP388 Barometric Pressure Sensor dimensions

Development Resources

Wiki : www.waveshare.com/wiki/BMP388_Barometric_Pressure_Sensor

Package Content

Weight: 0.018 kg

  1. BMP388 Barometric Pressure Sensor x1
  2. PH2.0 5PIN wire x1

1BMP388-Barometric-Pressure-Sensor-1_93.j  2PH2.0-5PIN-neutral_93.jpg

SEN12007
