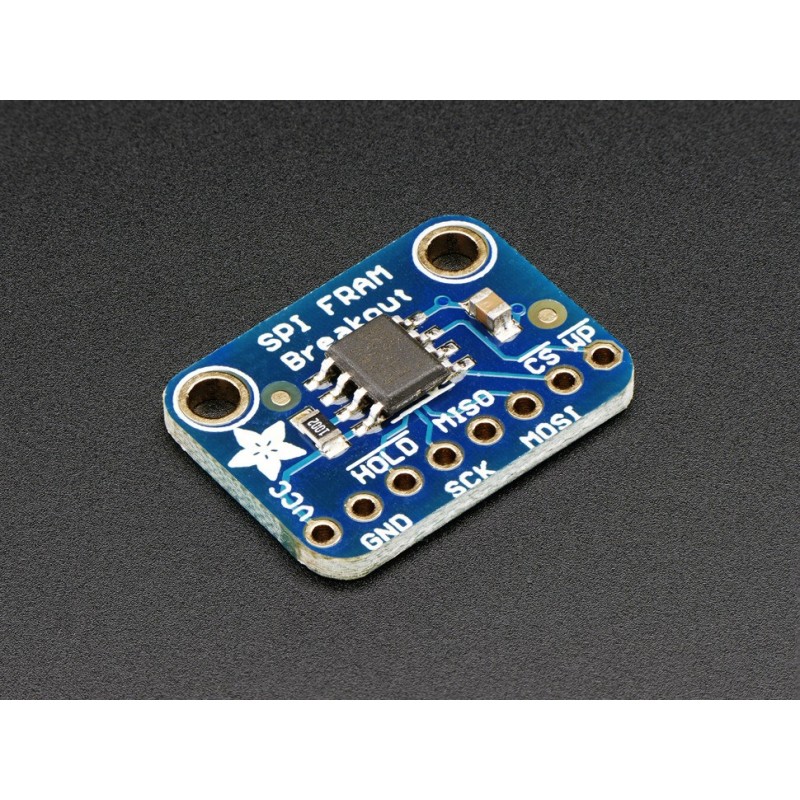

Módulo de memória FRAM não volátil c/ interface SPI - 64Kbit / 8KByte
Agora com a nossa placa FRAM SPI pode adicionar armazenamento FRAM ao seu projecto DIY. A FRAM permite uma performance rápida de escrita aliada a um consume energético baixo.
DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos.
*Atenção: as imagens são meramente ilustrativas.
-
DESCRIPTION
FRAM, or Ferroelectric Ram, is the coolest new data storage method that all the fashion magazines are talking about. Oh wait, no that's quilted handbags. But FRAM is pretty damn cool too! It's similar to Dynamic random-access memory, only with a ferroelectric layer instead of a dielectric layer. This gives it stable handling (the bytes you write are non-volatile) with dynamic responsiveness (you can write them very fast!)
It's excellent for low-power or inconsistent-power datalogging or data buffering where you want to stream data fast while also keeping the data when there's no power. Unlike Flash or EEPROM there's no pages to worry about. Each byte can be read/written 10,000,000,000,000 times so you don't have to worry too much about wear leveling.
This particular FRAM chip has 64 Kbits (8 KBytes) of storage, interfaces using SPI, and can run at up to 20MHz SPI clock rates. Each byte can be read and written instantaneously (like SRAM) but will keep the memory for 95 years at room temperature.
We picked up the largest chip that has SPI and is also 5V compliant. You can use this chip with either 3V or 5V power and logic. It comes in a breadboard-friendly breakout and a spare stick of 0.1" male header for soldering on.
We also have an I2C FRAM breakout board - which is large in size but slower (1MHz max I2C clock rate) -
TECHNICAL DETAILS
Dimensions:
- 15.5mm x 20mm x 2mm / 0.6" x 0.8" x 0.1"
- Mounting Holes Spacing: 14mm / 0.6"
- Weight: 1.2g
- Datasheet
