CAIXA MI:PRO EMPILHÁVEL PARA BBC MICRO:BIT V1 & V2

: PCO07086
3,98 €

Mantem o teu micro:bit protegido ao usares esta nova versão da Kitronik Mi:Pro Case.

Nota: Placa micro:bit não incluída.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

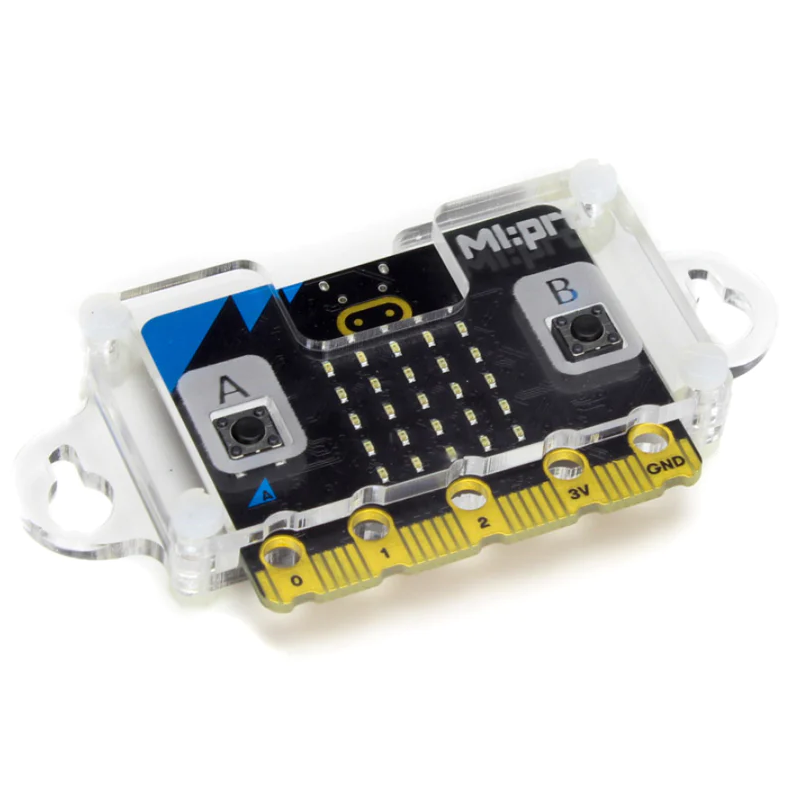

Keep your BBC micro:bit safe by using this mountable version of the MI:pro Protector Case for the BBC micro:bit. This case has been specifically designed with portability and expansion in mind and is compatible with both the original micro:bit V1 and the new micro:bit V2.

This 'Mountable' case features two 'keyhole slot' style wall mounting points attached to the sides of the BBC micro:bit case. Choose appropriate size screws for the material or surface that the case will be fastened to for a more sturdy and permanent installation.

The clear casing allows the BBC micro:bit to be seen inside the case, allowing the on-board LED matrix to be clearly viewed. The case provides full access to the micro:bit pins, USB port and reset button. The case is easy to assemble and we have included a guide in PDF form that can be found at the foot of this product description.



Note:

  • This case requires assembly, full instructions can be found in the resources section.

  • The BBC micro:bit is NOT included. If you also require a BBC micro:bit, you can order a micro:bit V2.



Features:

  1. Provides excellent protection to the BBC micro:bit whilst allowing access to the bottom pins.

  2. Full access to the A and B buttons on the BBC micro:bit.

  3. The mounting points allow you to fix the micro:bit to a surface for sturdy and more permanent installations.

  4. Full access to pins and connections including the micro USB connector.

  5. Clear case material shows the on-board LEDs in perfect clarity.

  6. The case is compatible with versions 1 and 2 of the micro:bit.



Contents:

  1. 4 x M3 Cheese Head Nylon Machine Screw.

  2. 1 x Front Plate.

  3. 4 x M3 Nylon Full Nut.

  4. 1 x Back Mounting Plate.

  5. 2 x Mid-layer Plate.



Dimensions:

  1. Length (minus the mounting brackets on the side): 65mm.

  2. Length (with the mounting brackets on the side): 91mm.

  3. Width: 37mm.

  4. Depth (without screws): 9mm.

  5. Depth (with screws): 14mm.



Resources:

  1. Assembly Instructions.
