• DESCONTINUADO

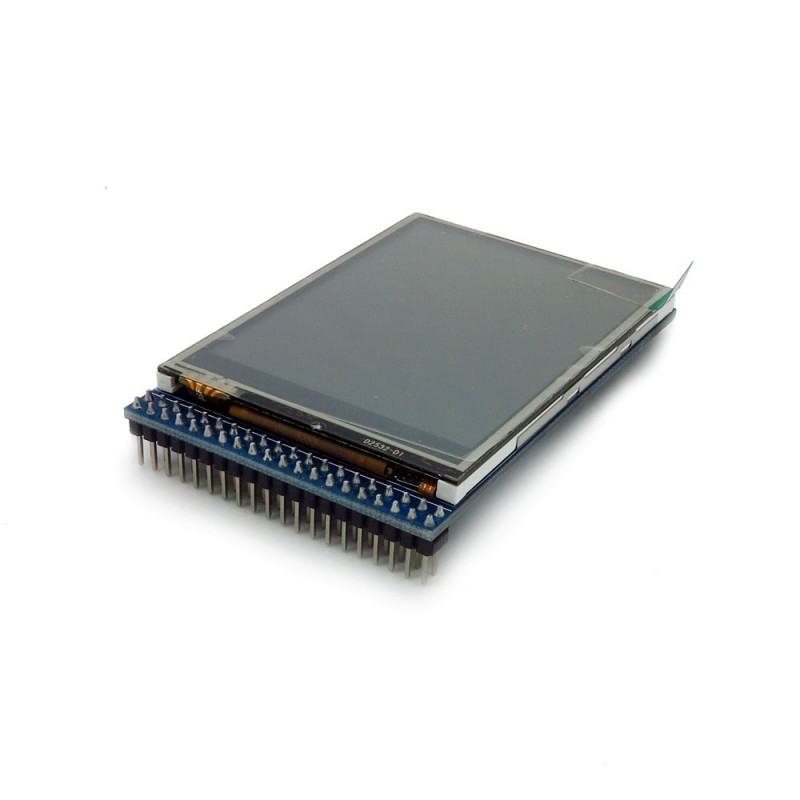

TFT Touch 2.8'' ITDB02-2.8
  • TFT Touch 2.8'' ITDB02-2.8
  • TFT Touch 2.8'' ITDB02-2.8
  • TFT Touch 2.8'' ITDB02-2.8

TFT Touch 2.8'' ITDB02-2.8

: LCD01015
22,40 €
preço com IVA incluído

DESCONTINUADO

Considere a seguinte Alternativa

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

ITDB02-2.8 module is 2.8" TFT LCD with 65K color 320 x 240 resolutions. The controller of this LCD module is ILI9325DS, it supports 8bit data interface with 4 wires control interface. Moreover, this module includes the touch screen and SD card socket.

ITDB02-2.8 is supported by UTFT Library.



Hardware

Pin

Type*

Description

GND

G

Ground

VCC

P

5V Power Supply pin

NC

-

No connection

RS

I

Data/Command selection

WR

I

Write signal enable, low active

RD

I

Read signal enable, low active

DB8

I

Data Bus

DB9

I

Data Bus

DB10

I

Data Bus

DB11

I

Data Bus

DB12

I

Data Bus

DB13

I

Data Bus

DB14

I

Data Bus

DB15

I

Data Bus

CS

I

Chip Selection，Low level active

NC

-

No connection

LED

P

Backlight

NC

-

No connection

DB0

-

No connection(8bit mode)

DB1

-

No connection(8bit mode)

DB2

-

No connection(8bit mode)

DB3

-

No connection(8bit mode)

DB4

-

No connection(8bit mode)

DB5

-

No connection(8bit mode)

DB6

-

No connection(8bit mode)

DB7

-

No connection(8bit mode)

T_CLK

I

Touch clock

T_CS

I

Touch chip selection

T_DIN

I

Touch data input

T_BUSY

O

Touch status

T_DOUT

O

Touch data output

T_IRQ

O

Touch interrupt

SD_SO

O

SD MISO

SD_SCK

I

SD SCK

SD_SI

I

SD MOSI

SD_NSS

I

SD NSS

NC

-

No connection

NC

-

No connection





Specification

Model IM120419009
Display Size 2.8“
Display Resolution 320 * 240
Display Interface Parallel 8 Bit
Display Controller HX8352-A
Expand
  • SD Card Socket
  • Touch Screen
Board Size 76 x 51mm
Weight 60.00g



Documentos

Demo Code

Datasheet (ILI9325DS)

Datasheet (ITDB02 2.8)

Schematic

Library
