• Novo

Ecrã tátil capacitivo 10.1inch IPS 800×1280 c/ interface DSI p/ Raspberry Pi - Waveshare 30052

: LCD01174
59,90 €
preço com IVA incluído

Este é um display com 10,1″ e uma resolução HD de 800×1280 pixels, toque capacitivo até 10 pontos, vidro temperado resistente (dureza 6H) com bonding óptico e conexão direta via interface DSI para Raspberry Pi, com suporte para backlight controlado por software e taxa de atualização de 60Hz.

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

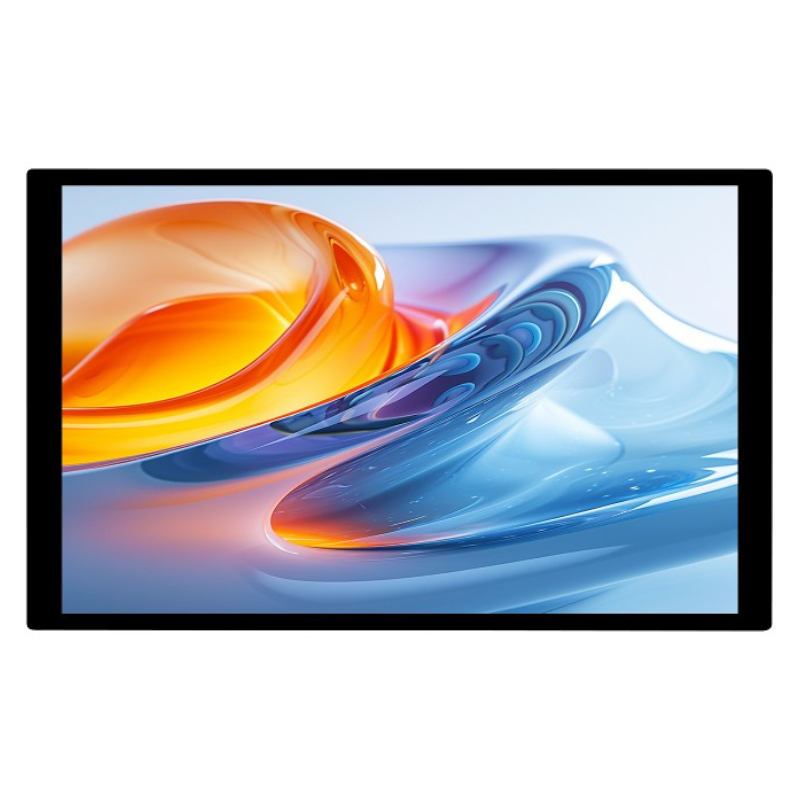

10.1inch capacitive touch display, front and back view



Thinner and more space-saving

Integrates the driver circuit into an FPC cable, the total thickness of the LCD is only 10.8mm

10.1inch capacitive touch display, more space-saving






IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

10.1inch capacitive touch display, adopts IPS display panel



10-Point Capacitive Touch

Gently touch, and see what you get, enjoy multi-point UI interaction via flexible operation. Adapting touch function via I2C signal, supports 10-point touch

10.1inch capacitive touch display, supports 10-point capacitive touch





interface definition


10.1inch capacitive touch display, interface definition



outline dimensions

10.1inch capacitive touch display, outline dimensions



Support touch screen customization




Resources & Services


Wiki: www.waveshare.com/wiki/10.1-DSI-TOUCH-A



Package Content

Weight: 1.116 kg

  1. 10.1-DSI-TOUCH-A ×1
  2. MIPI-DSI-Cable-12cm x1
  3. MX 1.25 2PIN to 2.54 3PIN cable x1
  4. FFC 22PIN cable ~200mm (opposite sides) x2
  5. MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
  6. Screws pack x1
110.1-DSI-TOUCH-A2mipi-dsi-cable-12cm_93.jpg3MX-1.25-2PIN-2.54-3P-110MM_93.jpg4FFC-22PIN-0.5-200mm_93.jpg5MX1.25-2PIN-MX1.25-4PIN-150mm_93.jpg66-angle-M2.5x25-Copper-Pillarx4pcs_93.jpg
LCD01174
