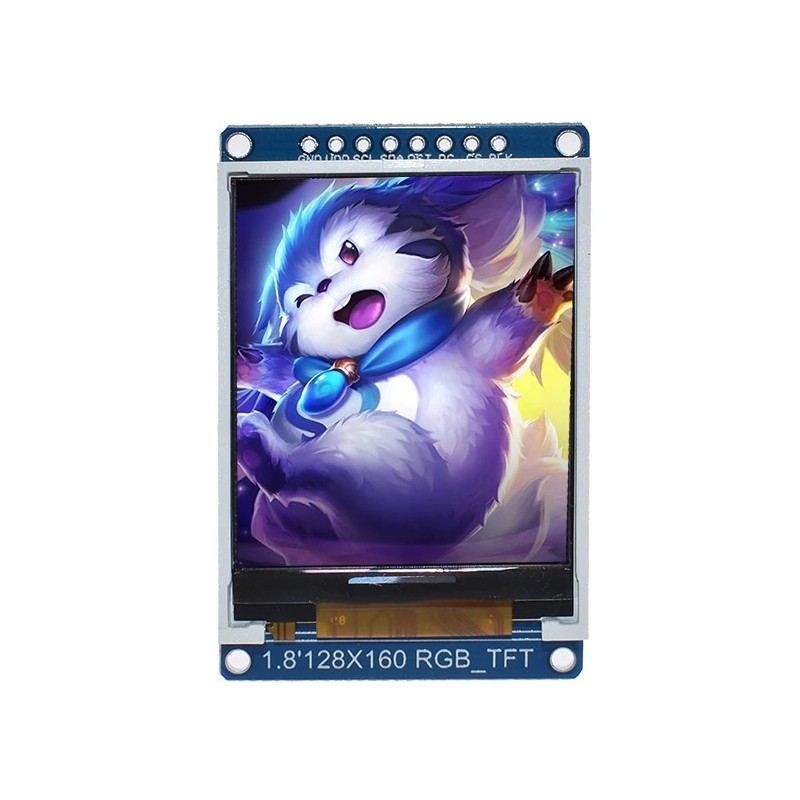

Display RGB 65K TFT 1.8inch 128x160 ST7735

: LCD01126
6,02 €

Este é um módulo de display LCD, 1,8 polegadas diagonal, 128x160 pixels, com controlador incorporado ST7735, comunica via interface SPI.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

TFT - LCD's brief introduction:

TFT-LCD liquid crystal display (TFT) is thin film transistor liquid crystal display (TFT). TFT liquid crystal provides a semiconductor switch for each pixel, and each pixel can be directly controlled by point pulse, so each node is relatively independent and can be continuously controlled, which not only improves the response speed of the display, but also can be accurately controlled. Display color levels, TFT LCD color more real, good brightness, high contrast, strong sense of hierarchy and bright colors.



Product parameters:

1. LCD size: 1.8"

2. Image size: 128x160pixel (1.8 inches)

(you can adjust the display direction, both horizontal screen and vertical screen)

3. LCD color: 65K full color

4. Hardware interface: SPI interface

5. Driver IC: ST7735

6. Working temperature: - 20 ° C to 70 ° C

8. Working power supply: 3.3v

9. Interface: 8Pin

10. Display area: 28x35mm

11. Size: 35x56 mm (1.8)

size

Interface definition:

1. GND: power supply

2.VCC: 3.3V-5.0V (DC)

3.SCL: SPI clock line

4.SDA: SPI data line

5.RES: restart the interface

6.DC: SPI data/command selection

7.CS: chip selection interface

8.BLK: backlight control, default float, low level off
