Kit Braço Robótico p/ Montagem - 4 DOF com 4 servos MG90S - Acrílico Preto

:ROB05029
34,95 €
preço com IVA incluído

Braço Robótico com 4 graus de liberdade fornecido às peças para Montagem.

Para dar vida a este produto irá necessitar de um microcontrolador e para tal aconselhamos usar um Arduino UNO R3 em conjunto com este shield ARD03184 que disponibiliza dois joysticks analógicos e conectores para facilitar a ligação dos servos ao Arduino.

Conteúdo da Embalagem:
1x Conjunto de peças de acrilico preto para montagem da estrutura do braço;
1x Conjunto de porcas e parafusos;
4x Servos MG90S com engrenagens metálicas;
1x Cabo extensão de 150mm para o servo da garra;

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Product description

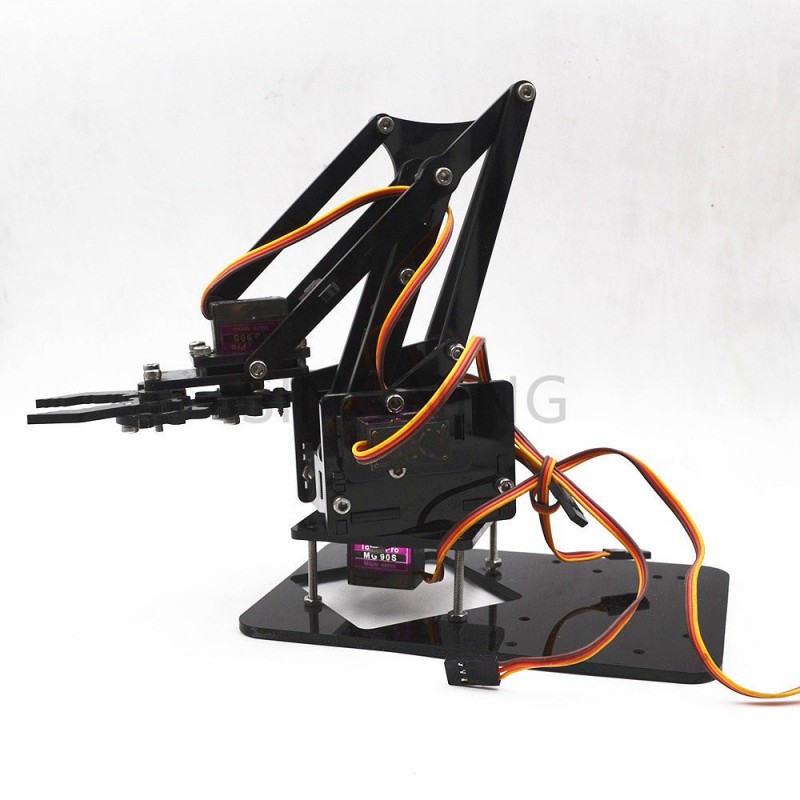

        This is a classic 4-degree-of-freedom ludic robotic arm inspired by industrial robots. The kit is suitable for guest space, college students, high school students use. You can use arduino, STM, ESP, micro:bit or even a Raspberry Pi to control this robotic arm.

       The product is supplied in pieces and need to be assembled.

  Weight: 213g



Shipping list:

  • set of acrylic cutting parts
  • pack of screws
  • 4x MG90s metal gear steering servo
  • 1x 150mm servo extension cable

.................................

Assembly guide

Please note that this product could have some differences from the above assembly guide specially on the claw. If you note that the parts you have arn't equal to the ones one the above Assemby guide, please check the following pictures to identify the correct assembly:

Part 1                                                                                                                               Part 2

Garra_v1

Garra_v2

Garra_v3

Garra_v4

Garra_v5

Garra_v6

Garra

Garra



Don't Forget to install the 6 round spacers (4 as the following image and 2 on the 3 point support in the middle of the arm):

Round Spacers



Note that in the 3 point support there are 2 wider holes and 1 tight hole. This part must be installed as in the following image:

3 Point Support



You will need to cut the following screw to allow a proper fit of the acrylic part:

Cut Screw
