• Botão de pressão metálico com luz vermelha

Interruptor metálico com luz vermelha (12V)

:CEL10008
12,70 €
preço com IVA incluído

Interruptor metálico, à prova de água, com indicador luminoso vermelho. Interruptor ON-OFF ( 2 posições )

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



Introduction

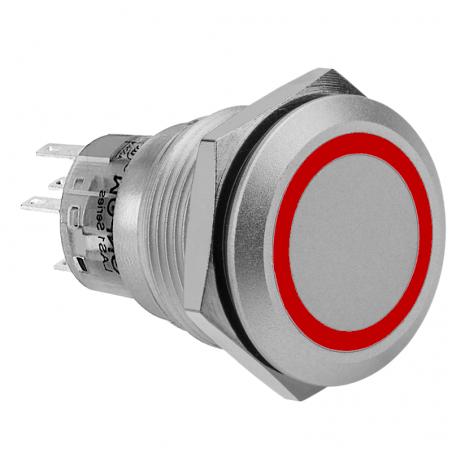

This is a water proof switch with illuminator (LED).  It is made by stainless steel with excellent quality.

It comes at red illuminated ring.

Specification



Manufacturer
ONPOW
Type of switch
vandal resistant
Number of positions
2
Contacts configuration
SPDT
AC contacts rating @R(at resistive load)
0.5A / 220V AC
DC contacts rating @R(at resistive load)
1A / 12V DC
IP rating
IP67
Switching method(the position in bracket indicates momentary position.)
ON-ON
Illumination
ring
Backlight colour
red
Illumination voltage
12V
Leads
for soldering
Operating temperature
-20...55°C
Electrical life
50000 cycles
Max. contact resistance:
50mΩ
Operating Force
5N
Mechanical durability
1000000 cycles
Button shape
flat
Mounting hole diameter
Ø19mm
Body colour
silver
Body material
stainless steel
Ring shape
rounded
Test voltage
2kV
Contact material
silver alloy
Stable positions number
2

CEL10008
