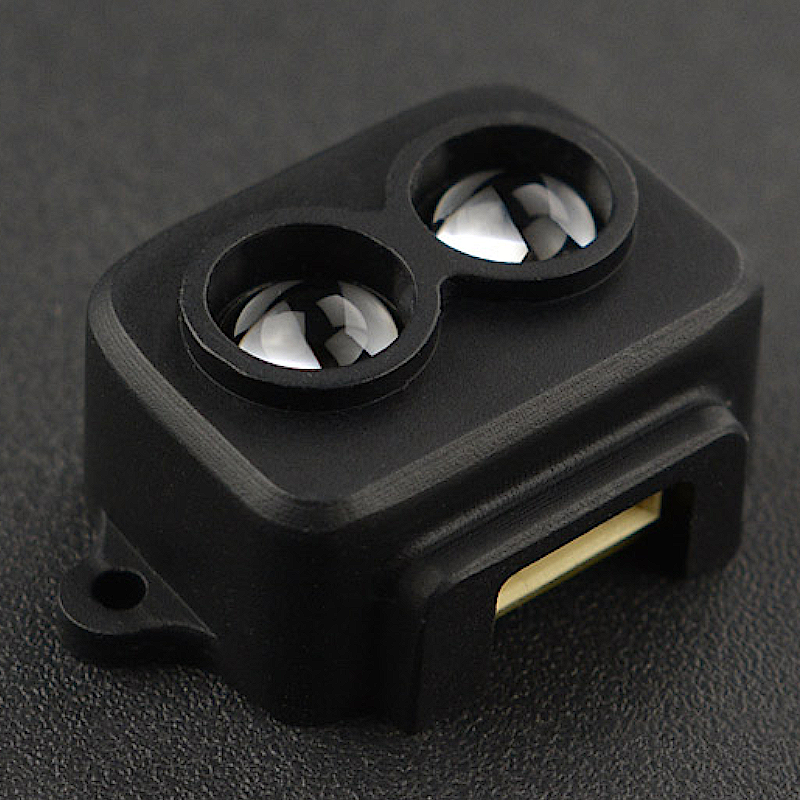

LIDAR TF-Luna (ToF) Sensor de Distancia Laser (8m, UART / I2C) - DFRobot SEN0340

:SEN03077
33,75 €
preço com IVA incluído

O TF-Luna é um Lidar de estado sólido de alcance de ponto único, baseado no princípio ToF. Com um tamanho bastante reduzido e pouco cosnumo de energia, este sensor pode alcançar uma medição de alcance estável, precisa e altamente sensível desde os 20cm até aos 8m.

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

TF-Luna is a single-point ranging solid state Lidar, based on ToF principle. With unique optical and electrical design, it can achieve stable, accurate and highly sensitive range measurement.



Small Size Design

  1. Small Size: 35mm*21.25mm*13.5mm

  2. Light Weight: 5g

  3. Low Power: ≤0.35W

ToF Single-Point Ranging Solid State LiDAR with Small Size Design





High Performance & Economical

This is a close-range, low-cost ToF single-point solid-state lidar with a range of 0.2m–8m. This solid-state lidar has high stability, high sensitivity, and high precision.

Measuring Range of TF-Luna Solid State LiDAR: 0.2m ~ 8m



Detection distance

TF-Luna solid-state lidar's detection distance is up to 8m, the blind zone is 0.2m, and distance resolution is 1cm.

Minimum edge length of 3.5 cm within a detection distance of 1m;

Minimum edge length of 28 cm within a detection distance of 8m;

TF-Luna Solid-State Lidar Sensor Detection distance

TF-Luna Solid-State Lidar Sensor's relationship between effective length and detect distance





Easy to get start, high level of generality

The power supply voltage of TF-Luna lidar distance sensor is 5V, equipped with UART communication interface, the communication level is 3.3V. TF-Luna is compatible with Arduino, Raspberry Pi and other platforms.

Wiring Diagram of TF-Luna ToF Single-Point Solid State LiDAR and Arduino Uno

Wiring Diagram of TF-Luna Solid State LiDAR and Arduino Uno





Wide Application Scenarios

  1. Robot: Robot obstacle avoidance, Robot anti-drop protection

  2. UAV: UAV obstacle avoidance, UAV altitude setting

  3. Smart City: Smart toilets, Smart trash bins

  4. Smart Retail: Smart ad trigger, Smart mirror trigger

TF-Luna ToF Single-Point LiDAR Applications





TF-Luna is an economical solid-state lidar that is low-cost and can be widely applied to many development scenarios.

TF-Luna applied to many development scenarios



Specification

  1. Distance Resolution: 1cm

  2. Frequency: 100Hz

  3. Ambient Light Resistance: 70klux

  4. Detecting Range: 0.2~8m

  5. Weight: ＜5g

  6. FoV: 2°

  7. Supply Voltage: 5V±0.1V

  8. Data Interface: UART/ I²C

  9. Accuracy: ±6cm@(0.2m-3m)



Documents



Shipping List

  1. TF-Luna LiDAR (8m) x1

  2. Wiring x1
