Expansor de 16 I/O SX1509 via I2C
  • Expansor de 16 I/O SX1509 via I2C
  • Expansor de 16 I/O SX1509 via I2C
  • Expansor de 16 I/O SX1509 via I2C
  • Expansor de 16 I/O SX1509 via I2C

Expansor de 16 I/O SX1509 via I2C

:CNV01012
12,95 €
7,95 € Poupe 5,00 €
preço com IVA incluído

Através de I2C, com o SX1509 pode conferir 16 canais extras de GPIO ao seu projeto. Contém também um driver LED programável ​​e um mecanismo de verificação contínua de teclados até 64 teclas.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste ou outro produto não hesite em contactar-nos



Are you low on I/O? No problem! The SX1509 can leverage your I2C interface for 16 extra channels of GPIO. And that's not all! This handy device also contains a fully programmable LED driver and a keypad scanning engine which enables continuous keypad monitoring of up to 64 keys! Since the I/O banks can operate between 1.2V and 3.6V (5.5V tolerant) independent of both the core and each other, this device can also work as a level-shifter.

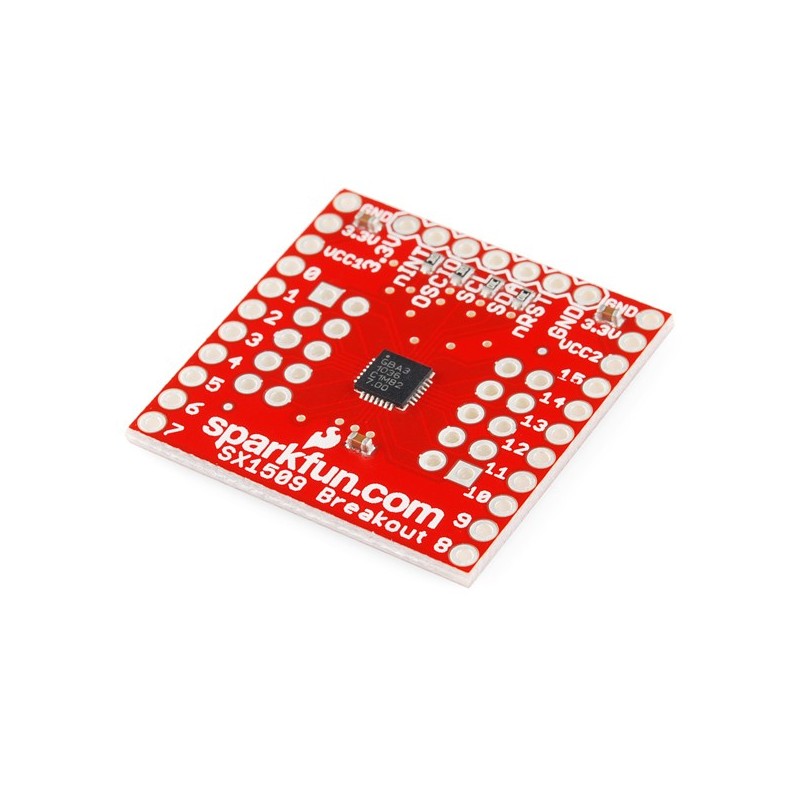

This breakout board makes it easy to prototype using the SX1509 so you can add more I/O onto your Arduino or I/O limited controller. We've even spun up an Arduino Library to get you started!



Features:

  • Enable Direct Level Shifting Between I/O Banks and Host Controller
  • 5.5V Tolerant I/Os, Up to 15mA Output Sink on All I/Os
  • Integrated LED Driver with Intensity Control
  • On-Chip Keypad Scanning Engine Supports Up to 8x8 Matrix (64 Keys)
  • 16 Channels of True Bi-directional Style I/O
  • 400kHz I2C Compatible Slave Interface



Documents:

CNV01012
