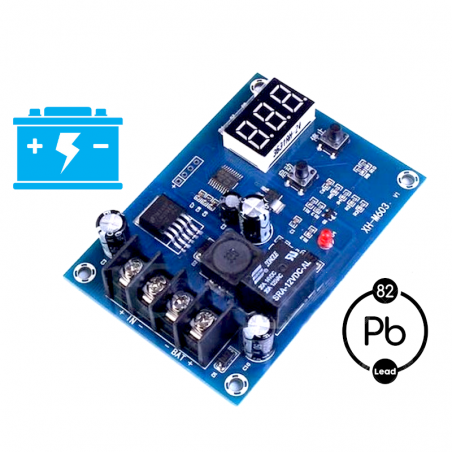

Controlador de Carga p/ Baterias 12/24V - XH-M603 HW-632

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Product Introduction:
1.Model:XH-M603 HW-632
2.Input Voltage:DC 10-30V
3.Display Precision:0.1V
4.Control Precision:0.1V
5.Output Type:direct output
6.Voltage Tolerance:+/-0.1V
7.Application Fields:12-24V storage battery
8.Size;82*58*18mm

Using Method:
1.Set Starting Voltage:in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash;
  you can start or stop button to set starting up charge voltage value.
2.Set Stop Voltage:in normal display voltage state,press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;
  you can start or stop button to set stoping charge voltage value.
3.Factory Reset:in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings.

Product Explanation Video and Tutorial from RoboJAX:

Chapters of this video tutorial (check here for complete information)

• 00:26 Introduction
• 01:24 XH-M603 Explained
• 05:58 Settings of the module
• 09:41 Setting factory defaults
• 10:39 Demonstration of charging a battery
• 15:07 Calculating Charging Time

Tested by ICStation's Outstanding Partner arduinoLab:
