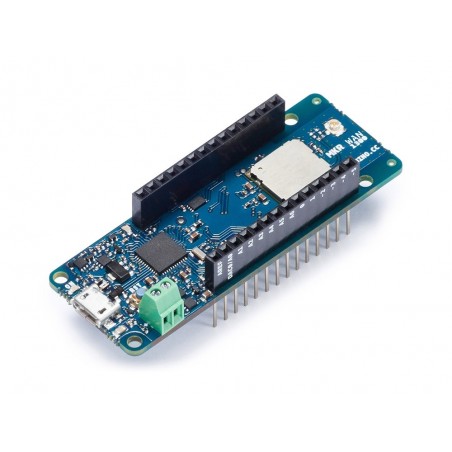

Arduino MKR WAN 1300 sem Antena
MKR WAN 1300 é uma placa poderosa que combina a funcionalidade da conectividade MKR Zero e o LoRa / LoRaWAN. Foi projetada para oferecer uma solução prática e econômica para os utilizadores que procuram adicionar conectividade LoRa aos seus projetos É baseado no Atmel SAMD21 e um módulo Murata CMWX1ZZABZ Lo-Ra.
DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos.
*Atenção: as imagens são meramente ilustrativas.
Arduino MKR WAN 1300 has been designed to offer a practical and cost effective solution for makers seeking to add Lo-Ra connectivity to their projects with minimal previous experience in networking. It is based on the Atmel SAMD21 and a Murata CMWX1ZZABZ Lo-Ra module.
The design includes the ability to power the board using two 1.5V AA or AAA batteries or external 5V. Switching from one source to the other is done automatically. A good 32 bit computational power similar to the MKR ZERO board, the usual rich set of I/O interfaces, low power Lo-Ra communication and the ease of use of the Arduino Software (IDE) for code development and programming. All these features make this board the preferred choice for the emerging IoT battery-powered projects in a compact form factor. The USB port can be used to supply power (5V) to the board. The Arduino MKR WAN 1300 is able to run with or without the batteries connected and has limited power consumption.
Warning: Unlike most Arduino & Genuino boards, the MKR WAN 1300 runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board. While output to 5V digital devices is possible, bidirectional communication with 5V devices needs proper level shifting.
You can find here your board warranty informations.
- On the Software on the Arduino Forum
- On Projects on the Arduino Forum
- On the Product itself through our Customer Support
Please note : In order to provide the best experience, the gateway works only with A2A packet forwarder and network server.
Overview Tech Specs Documentation FAQ
Microcontroller SAMD21 Cortex-M0+ 32bit low power ARM MCU Radio module CMWX1ZZABZ (datasheet) Board Power Supply (USB/VIN) 5V Supported Batteries(*) 2x AA or AAA Circuit Operating Voltage 3.3V Digital I/O Pins 8 PWM Pins 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 - or 18 -, A4 -or 19) UART 1 SPI 1 I2C 1 Analog Input Pins 7 (ADC 8/10/12 bit) Analog Output Pins 1 (DAC 10 bit) External Interrupts 10 (0, 1, 4, 5, 6, 7, 8, 9, 16 / A1, 17 / A2) DC Current per I/O Pin 7 mA Flash Memory 256 KB SRAM 32 KB EEPROM no Clock Speed 32.768 kHz (RTC), 48 MHz LED_BUILTIN 6 Full-Speed USB Device and embedded Host Antenna power 2dB Carrier frequency 433/868/915 MHz Working region EU/US Length 67.64 mm Width 25 mm Weight 32 gr.
The MKR WAN 1300 is open-source hardware! You can build your own board using the following files:
Download the full pinout diagram as PDF here.
The MKR WAN 1300 has to be used with GSM antenna that can be attached to the board with the micro UFL connector. Please check that it can accept frequencies in the LoRa's range (433/868/915 MHz).
Please note: for best result, do not attach the antenna to a metallic surface like car chassis, etc.
Batteries, Pins and board LEDs
Battery capacity: The connected batteries must have a nominal voltage of 1.5V
Battery connector: If you want to connect a battery pack (2x AA or AAA) to your MKR WAN 1300 use the screw terminal block.
Polarity : as reported on the silk in the bottom of the board, positive pin is the closest to the USB connector
Vin: This pin can be used to power the board with a regulated 5V source. If the power is fed through this pin, the USB power source is disconnected. This is the only way you can supply 5v (range is 5V to maximum 6V) to the board not using USB. This pin is an INPUT.
5V: This pin outputs 5V from the the board when powered from the USB connector or from the VIN pin of the board. It is unregulated and the voltage is taken directly from the inputs.
VCC: This pin outputs 3.3V through the on-board voltage regulator. This voltage is 3.3V if USB or VIN is used and equal to the series of the two batteries when they are used
LED ON: This LED is connected to the 5V input from either USB or VIN. It is not connected to the battery power. This means that it lits up when power is from USB or VIN, but stays off when the board is running on battery power. This maximizes the usage of the energy stored in the battery. It is therefore normal to have the board properly running on battery power without the LED ON being lit.
Onboard LED: On MKR WAN 1300 the onboard LED is connected to D6 and not D13 as on the other boards. Blink example or other sketcthes that uses pin 13 for on board LED may need to be changed to work properly.
