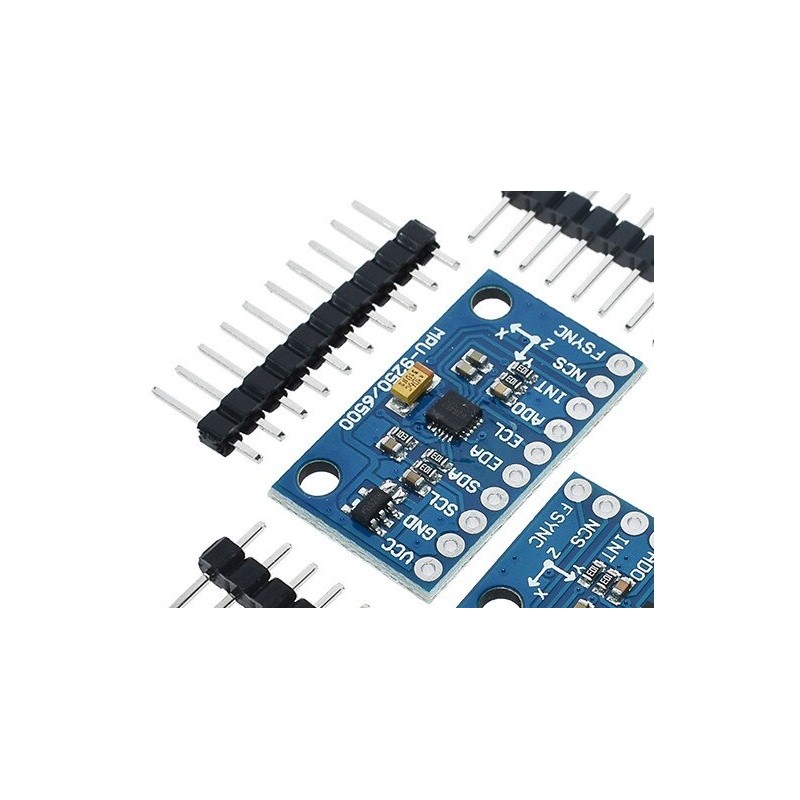

SPI I2C MPU-9250 9-Axis Gyro Accelerator Magnetometer Sensor Module

:SEN16003
€6.79
Tax included

The module consists of a MPU-9250 ( Nine-Axis (Gyro + Accelerometer + Compass MEMS MotionTracking Device ) and a linear 3.3V LDO regulator. The module can be powered between 3V to 5V through the LDO regulator or if a 3.3V power source exists then the LDO regulator can be bypassed by soldering the jumper next to it. In any case, I/O signal voltage must not exceed the MPU-9250 VDDIO pin voltage.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Product Description

The module consists of a MPU-9250 ( Nine-Axis (Gyro + Accelerometer + Compass MEMS MotionTracking Device ) and a linear 3.3V LDO regulator. The module can be powered between 3V to 5V through the LDO regulator or if a 3.3V power source exists then the LDO regulator can be bypassed by soldering the jumper next to it. In any case, I/O signal voltage must not exceed the MPU-9250 VDDIO pin voltage.

  • Chip: MPU-9250
  • Power supply: 3~5Vdc (internal low dropout regulator)
  • Communication: Standard IIC / SPI communication protocol
  • 16bit AD converter-chip 16-bit data output
  • Gyro range: ± 250 500 1000 2000 ° / s
  • Acceleration range: ± 2 ± 4 ± 8 ± 16g
  • Magnetic field range: ± 4800uT
  • Using Immersion Gold PCB, machine welding process to ensure quality
  • 2.54mm pin spacing
  • Module size 15x25mm
