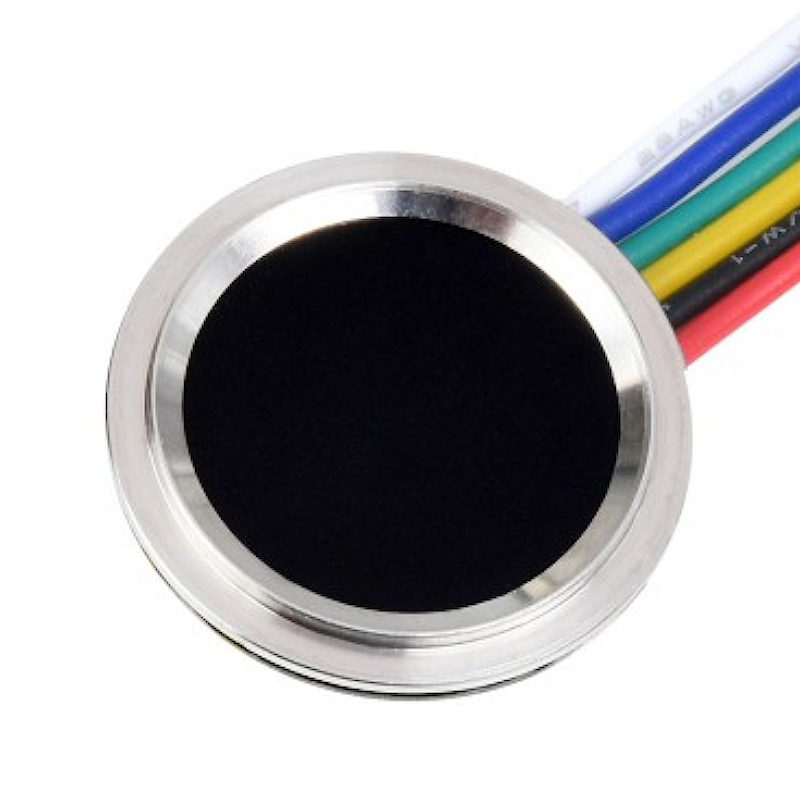

Round-Shaped All-In-One Capacitive Fingerprint Sensor (D), Cortex Processor, 360° Verification

:SEN13017
€19.92

Based on a high-performance Cortex processor, combined with the high-security commercial fingerprinting algorithm, the UART Fingerprint Sensor (D) features functionalities like fingerprint enrolling, image acquisition, feature finding, template generating and storing, fingerprint matching, and so on

If you want to know more about this product, please check the Wiki Page.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description:

UART Fingerprint Sensor (D)

Capacitive 360° Verification

nail plate-sized, UART commands operation




Product Features

Based on a high performance Cortex processor, combined with high-security commercial fingerprinting algorithm, the UART Fingerprint Sensor (D) features functionalities like fingerprint enrolling, image acquisition, feature finding, template generating and storing, fingerprint matching, and so on. Without any knowledge about the complicate fingerprinting algorithm, all you need to do is just sending some UART commands, to quickly integrate it into fingerprint verification applications which require small size and high precision.

  1. Easy to use by some simple commands, you don't have to know any fingerprint technology, or the module inter structure

  2. Commercial fingerprinting algorithm, supports functions like fingerprint enrolling, fingerprint matching, fingerprint image acquisition, and fingerprint feature uploading, stable performance, fast identification

  3. Capacitive sensitive detection, just touch the collecting window lightly for fast verification

  4. Highly integrated hardware, processor and sensor in one small chip, suitable for small size applications

  5. Narrow stainless steel rim, supports 360° omni-directional verification

  6. Embedded human sensor, the processor will enter sleep automatically, and wake up when touching, lower power consumption

  7. Onboard UART connector, easy to connect with hardware platforms like STM32 and Raspberry Pi




Specifications

parameter value
Sensor capacitive touch sensor
Resolution 508 DPI
Image pixels 160×160
Image greyscale 8
Sensor dimension R15.5 mm
Fingerprint capacity 150
Matching time <500ms (1:N, and N≤100)
False acceptance rate             < 0.001%
False rejection rate < 0.1%
Operating voltage 2.7~3.3V
Operating current < 50mA
Sleep current < 16uA
ESD contact discharge 8KV / aerial discharge 15KV
Communication port UART
Baudrate 19200 bps
Operating environment Temperature: -20°C~70°C; Humidity: 40%RH~85%RH (no condensation)
Storage environment Temperature: -40°C~85°C; Humidity: <85%RH (no condensation)




Pinout definition





Outline dimensions





Resources & Services




Package Content

Weight: 0.007 kg

  1. UART Fingerprint Sensor (D) x1

  2. 6PIN squid wire x1
