Automatic Water Pumping Kit

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

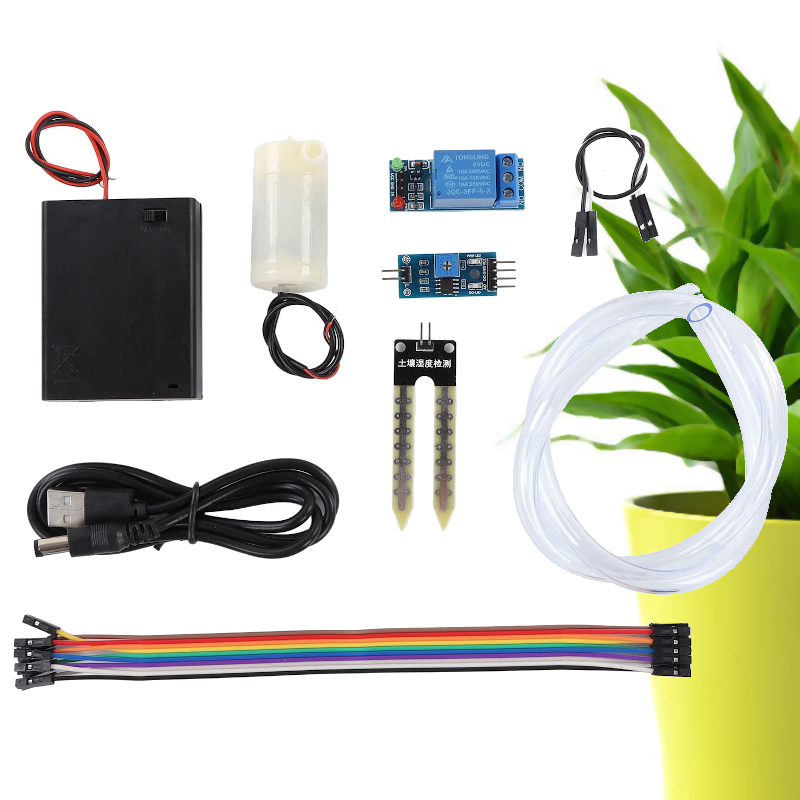

Components included in the Kit:

1 x Relay Module
1 x Soil Moisture Sensor
1 x Soil Moisture Module
1 x Soil Moisture Connection Cable
1 x Small Pump
1 x Battery Box
1 x USB Cable
1 x Silicone Hose
1 x Jumper Wire

Instructions:

- Test relay module: connect the relay module VCC to 5V, GND to ground, IN to GND, the relay will jump, and when IN is suspended, the relay will resume, so repeatedly, you can hear the relay "Kaka" sound.

- Test the soil moisture sensor module: Connect the fork probe and transmitter module with two DuPont wires. The transmitter module VCC is connected to 5V, GND is grounded. When the power is on, the red power light is always on, and the green (blue) light is flashing once. The fork probe is used. Directly inserted into the water, the green (blue) color indicator light is on.

- The red line of the water pump is connected to 5V, the black line is grounded, the pump works, pay attention to the test for 1 second, and it is not allowed to work in the air for a long time.

- Connect the system, powered on and if the pump has been working, it is correct. Because in the air, the probe can not detect the humidity, there is no problem if it is installed correctly in the pot.
