Arduino UNO R3 Compatible SMD

: ARD02089
€9.67

Arduino Uno R3 compatible with ATMEGA328 SMD version and CH340 communication Chip. Witg Header 40pins male included and without USB Cable!

Here you can find USB Cable 50cm

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

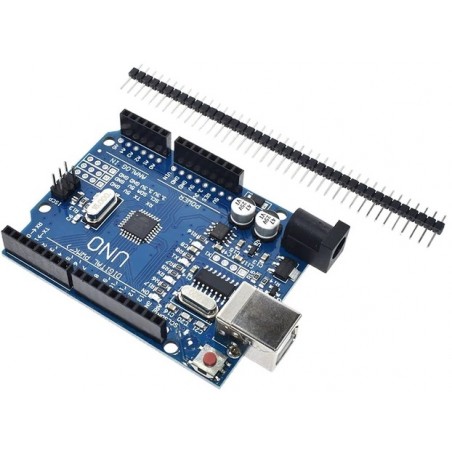

Arduino Uno R3 compatible CH340 Chip without USB Cable

This version is optimized in the original version to ensure consistent and compatible with the original, but also easy to use.

Increase the pin socket, to facilitate the use of DuPont line.

Replaced 16u2 By CH340.

Digital I/ O Digital Inputs/ Outputs: 0-13

Analog I/ O Analog Input/ Output: 0-5

Support ISP download function

The Input Voltage: no external power supply when connected to the computer USB, external power supply: 5V-12V DC

Output Voltage: 3.3V and 5V DC voltage output

Using Atmel Atmega328 micro controller

Board Size: Approx. 7.2cm x 5.3cm x 1.5cm/ 2.83" x 2.09" x 0.59"



Driver : Driver for Windows 7

Open circuit diagram of the original design, the development of software interface for free download, can also be in accordance with the requirements and their modified, download the program is simple and convenient. Can simply use sensors, all kinds of electronic components connection (such as: LED lights, buzzer, buttons, photoresistance, etc.), make all sorts of interesting work. Microprocessor controller (ATMEGA328), using high-speed development interface and the environment are very simple and easy to understand, very suitable for beginners to learn.

What is the Arduino?

The Arduino is a Simple I/O platform based on open source code, and use Java, such as Processing/Wiring of C language development environment, the characteristics of easy to understand. Allows you to quickly use the Arduino do interesting things.

The Arduino can be used with some electronic components such as: LED lights, buzzer, buttons, photoresistance, etc. The Arduino development environment based on the principle of open source interface, allows you to free download to use developed more amazing interactive work.
