Pro Micro Leonardo 32u4 - 5V/16MHz

: ARD02045
€9.67

It has Arduino Leonardo bootloader in it. So you can just use it like a normal Arduino Leonardo board.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

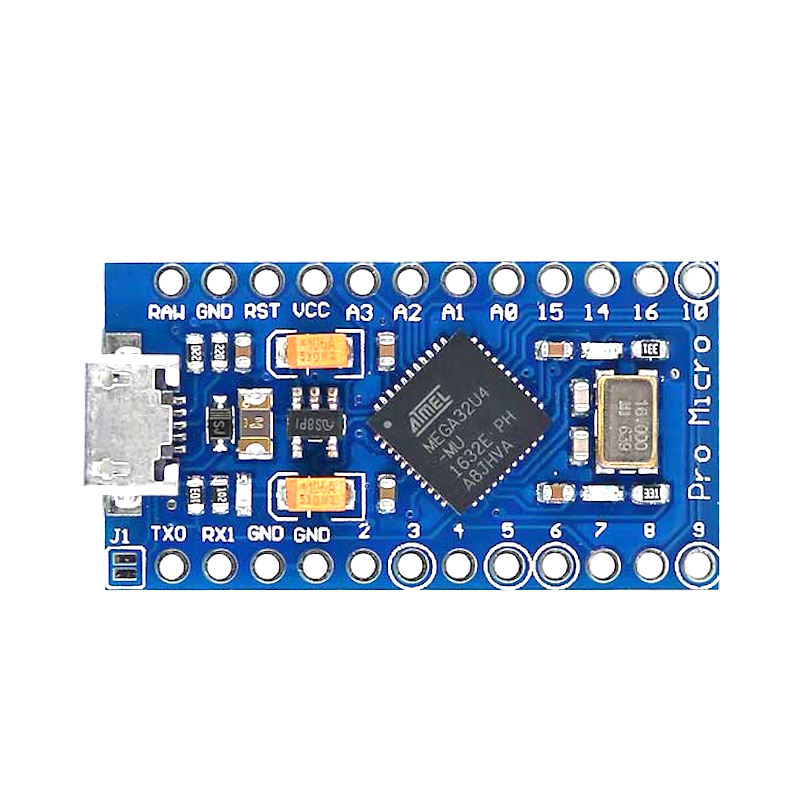

The Pro Micro Leonardo is similar to the Pro Mini except with an ATmega32U4 on board. The USB transceiver inside the 32U4 allows us to add USB connectivity on-board and do away with bulky external USB interface.

This tiny little board does all of the neat-o Arduino tricks that you’re familiar with: 4 channels of 10-bit ADC, 5 PWM pins, 12 DIOs as well as hardware serial connections Rx and Tx. Running at 16MHz and 5V, this board will remind you a lot of your other favorite Arduino-compatible boards but this little guy can go just about anywhere. There is a voltage regulator on board so it can accept voltage up to 12VDC. If you’re supplying unregulated power to the board, be sure to connect to the “RAW” pin on not VCC.



Features:

  • ATmega32U4 running at 5V/16MHz with Arduino Leonardo bootloader
  • On-Board micro-USB connector for programming
  • 4 x 10-bit ADC pins
  • 12 x Digital I/Os (5 are PWM capable)
  • Rx and Tx Hardware Serial Connections
  • Dimensions: 1.3x0.7"
  • Pin Raw max input voltage: 10V

ARD02045
