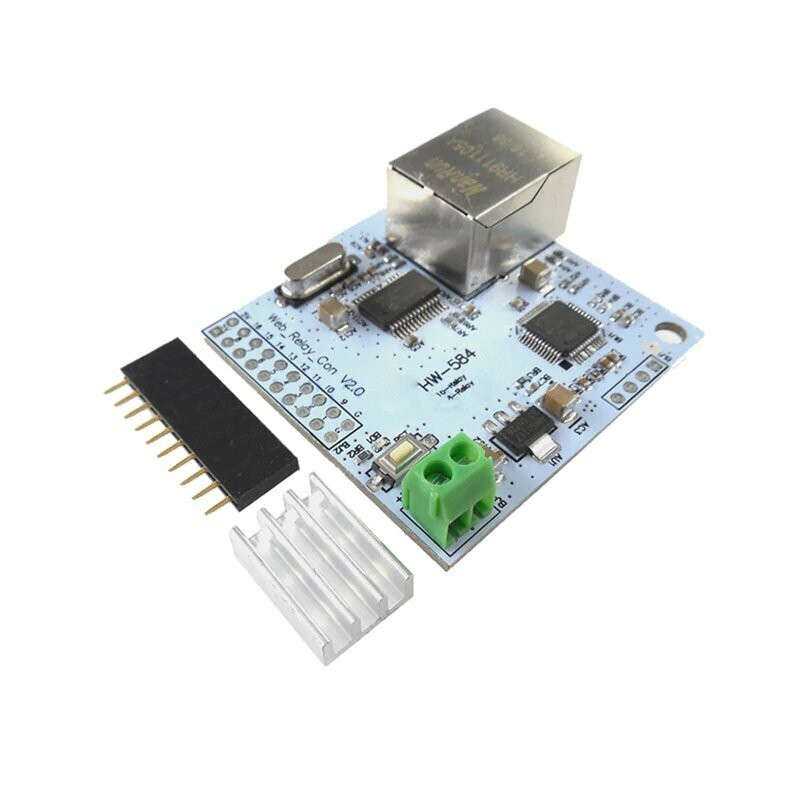

HW-584 RJ45 Network Internet IO for 16x 5V Relays ENC28J60

HW-584 RJ45 Network Internet Relay Control Switch 5V

• This is a 16 channel digital output network control board, it is based on a 32-bit system network for 16 relay control module. Through this board you can control through the Internet or router network the relay modules, so it realize the purposes of the remote control switch power supply centralized management.
• Suitable for: home automation, hotel, shopping mall management, Internet cafes, karaoke time, daily office, stores monitoring, networking, industrial control equipment, test equipment, power control, unattended, underground pipes, mining equipment, ships, machine room, street lamp management, intelligent management, centralized management.
• Model: HW-584
• Channel: Up to 16Channel
• External power supply voltage: 5V DC 2A
• Can connect a relay number: Up to 16
• Work temperature: -30°C – 85°C
• Size: approx. 1.86x1.89x0.79in

Network Settings

• Protocol: TCP/IP
• IP: 192.168.1.4/30000
• On the following link you can find more information about reprograming this board: https://github.com/nielsonm236/NetMod-ServerApp

Package Includes

• 1 x HW-584 RJ45 Network Internet Relay Control Switch 5V
• 1 x Heating sink
• 1 x 10 Pin Female
