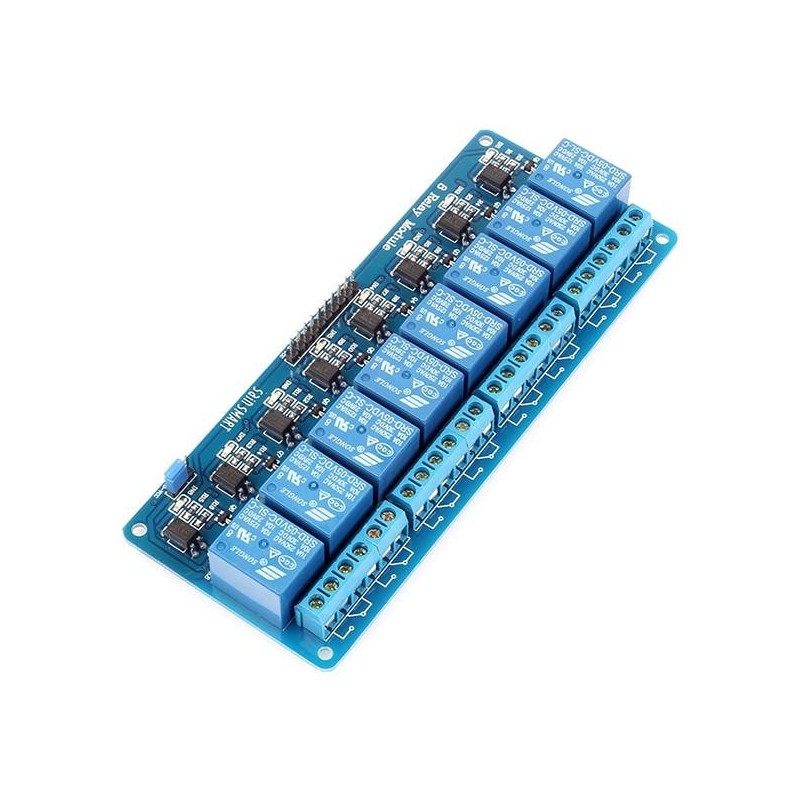

8-Channel 5V Relay Module opto-isolated

: MRE03025
€11.90
Tax included

This is a 5V 8-Channel Relay interface board, Be able to control various appliances and other equipment with large current. It can be controlled directly by Micro-controller (Raspberry Pi, Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



This is a 5V 8-Channel Relay interface board, Be able to control various appliances and other equipment with large current. It can be controlled directly by Micro-controller (Raspberry Pi, Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

  • 5V 8-Channel Relay interface board and each one needs 15-20mA Driver Current
  • Equipped with high-current relay, AC250V 10A ; DC30V 10A
  • Standard interface that can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
  • Indication LED’s for Relay output status



DESCRIPTION

A Relay is an electrically operated switch. Many relays use an electromagnet to mechanically operate the switch and provide electrical isolation between two circuits.

  • This 8 channel 5V relay has both optical and magnetic isolation,  providing a lot of protection to the inputs from electrical faults on the outputs.
  • Works well with both 3.3V and 5V logic (Raspberry Pi, Arduino, Teensy..), requiring little current drive.
  • Breadboard friendly, using Female/male dupont makes it extremely convenient for prototyping.
  • LED indicates its working status. Red refers to errors.
  • 3 terminals per SPDT relay.



DOCUMENT





WHAT'S IN THE PACKAGE

1 x 8-Channel 5V Relay Module

MRE03025
