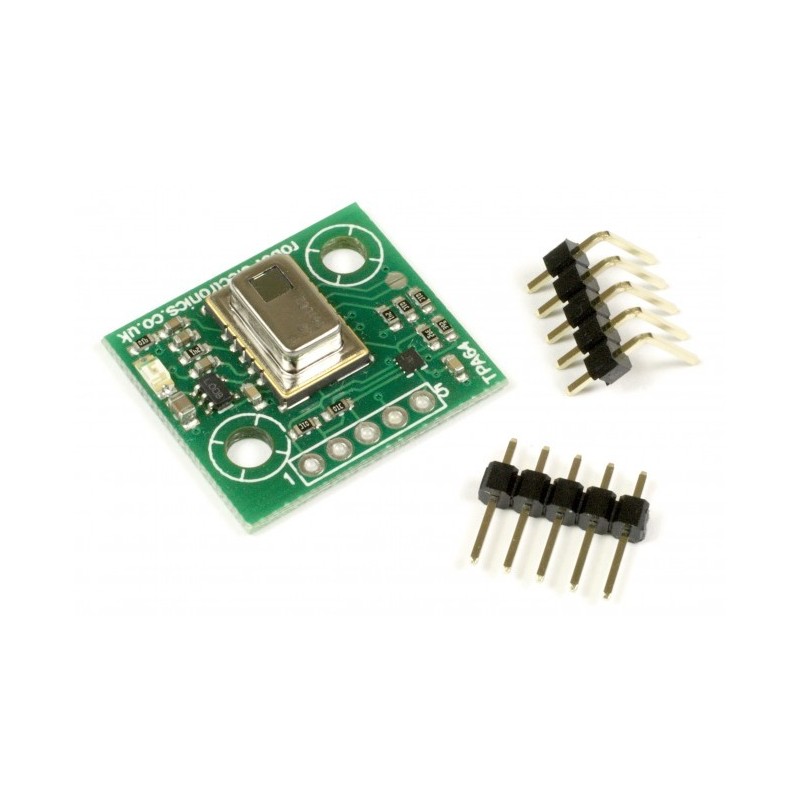

TPA64 - Matriz 8x8 Temperature Sensor

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Utilising the fantastic AMG8833 thermopile array from Panasonic, the TPA64 offers an economical but powerful temperature imaging solution.

Video above is taken from our C# example using a USB-ISS to talk to the TPA64. The top image is raw data painted to the screen, the bottom are after bilinear and bicubic interpolation. The sensor even shows a heatspot for the camera in the top right!

•
• 3.3v to 5v operation, with onboard I2C level shifter
• Temperature detection of two-dimensional area: 8 × 8 (64 pixels)
• Temperature range of 0°c to +80°c
• Temperature accuracy of +/- 2.5°c
• Human detection at up to 7m
• Viewing angle 60°, optical axis gap 5.6°
• Current consumption 4.5mA
• Module defaults to I2C address 0xC2, changeable to 0xC0
• Weight is only 3g
• Size 24mm x 21mm
