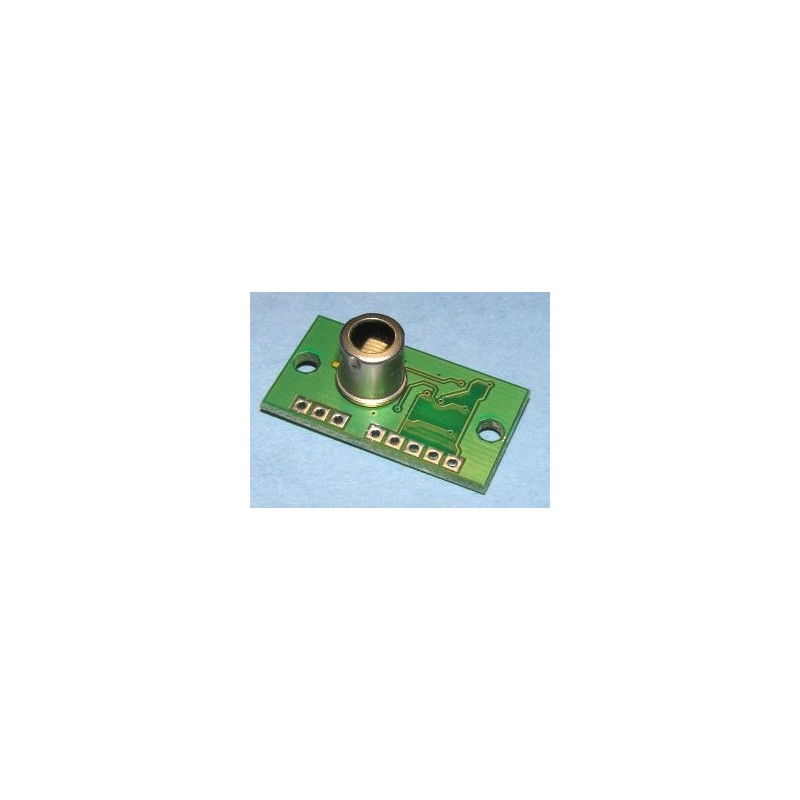

TPA81

8 Pixel Thermal Array Sensor. Detects a candle flame at a range 2 meters (6ft) and is unaffected by ambient light! Detect Human Body heat! Servo control for image construction!

Specifications:

• Voltage - 5v only required
• Current - 5mA Typ. excluding servo
• Temperature Range - 4°C - 100°C
• Accuracy (Full FOV) - +/-2°C +/-2% from 10°C to 100°C
• Accuracy (Full FOV) - +/-3°C from 4°C to 10°C
• Field of View - 41° x 6° (8 pixels of approx. 5° x 6°)
• Outputs - 1 ambient + 8 pixel temperatures
• Communication - I2C Interface
• Servo - Controls servo in 32 steps to 180° rotation
• Small Size - 31mm x 18mm

More information in the product support page.

* Note: Product may not be exactly as shown in image. Contact us for more information.
