Li-ion Battery HAT for Raspberry Pi, 5V Output, Quick Charge

:PCO01109
€13.74

The Li-ion Battery HAT integrates SW6106 power bank management chip, allows providing 5V regulated power supply to your Pi from a 14500 battery, makes the Pi becomes a portable device. This module cannot be used as UPS (uninterruptible power supply), the battery voltage is too low, it will shut down the Raspberry Pi system.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

Overview

The Li-ion Battery HAT integrates SW6106 power bank management chip, allows providing 5V regulated power supply to your Pi from a 14500 battery, makes the Pi becomes a portable device. It will charge the battery as well, supports bi-directional quick charge. This module can be used as a universal mini power bank, also works with other 5V devices. This module cannot be used as UPS (uninterruptible power supply), the battery voltage is too low, it will shut down the Raspberry Pi system.

Features

  • Onboard SW6106 chip, supports bi-directional quick charge, supports multi quick charge protocols like PD/QC/FCP/PE/SFCP
  • Lithium battery protection circuitry, provides reverse protection, over charge/discharge protection, over current protection, and short circuit protection
  • Onboard indicators: quick charge, warning, and power capacity

Specifications

  • Output voltage: 5V
  • Applicable battery: 3.7V 14500 lithium battery (4.2V when full charged)
  • Dimension: 65mm × 30mm
  • Mounting hole size: 3.0mm

What's on Board

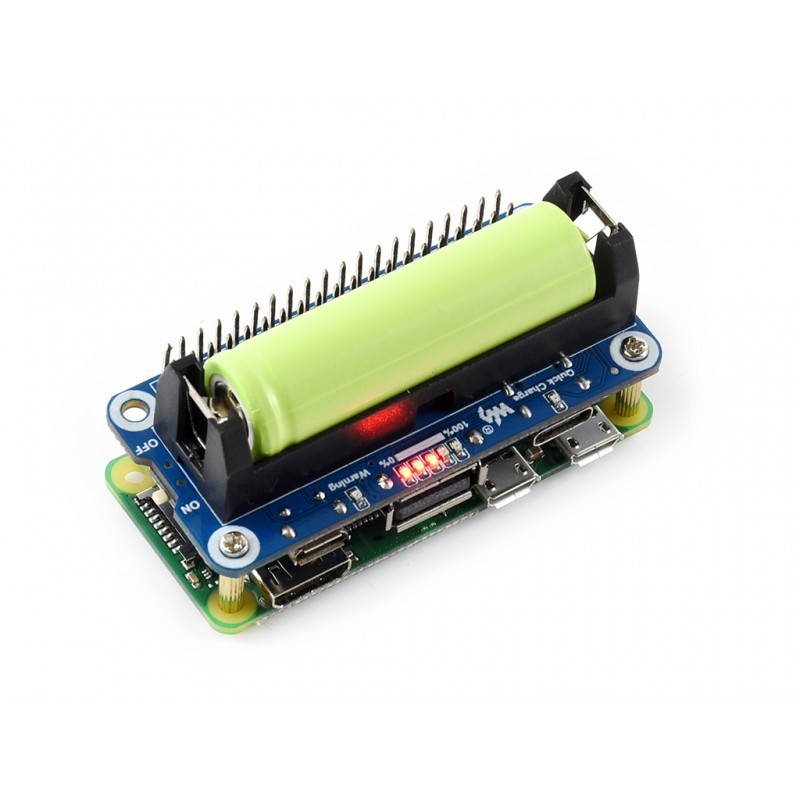

Li-ion Battery HAT on board resource
  1. Raspberry Pi GPIO connector: for connecting Raspberry Pi
  2. SW6106 power management chip
  3. USB Type-C connector: battery charge/power output
  4. USB Type-A connector:power output
  5. Micro USB connector:battery charge
  6. Raspberry Pi power switch
  7. Battery warning indicator: on when the battery is reverse
  8. Battery power capacity indicator: 5x LEDs to indicate the power capacity and charging status
  9. Quick charge indicator: on when quick charging
  10. 14500 battery holder

Dimension


Development Resources

Wiki : www.waveshare.com/wiki/Li-ion_Battery_HAT



Package Content

Weight: 0.021 kg

Note: the Raspberry Pi and 14500 battery in the photo are NOT included.

  1. Li-ion Battery HAT x1
  2. RPi screws pack (2pcs) x1
PCO01109
