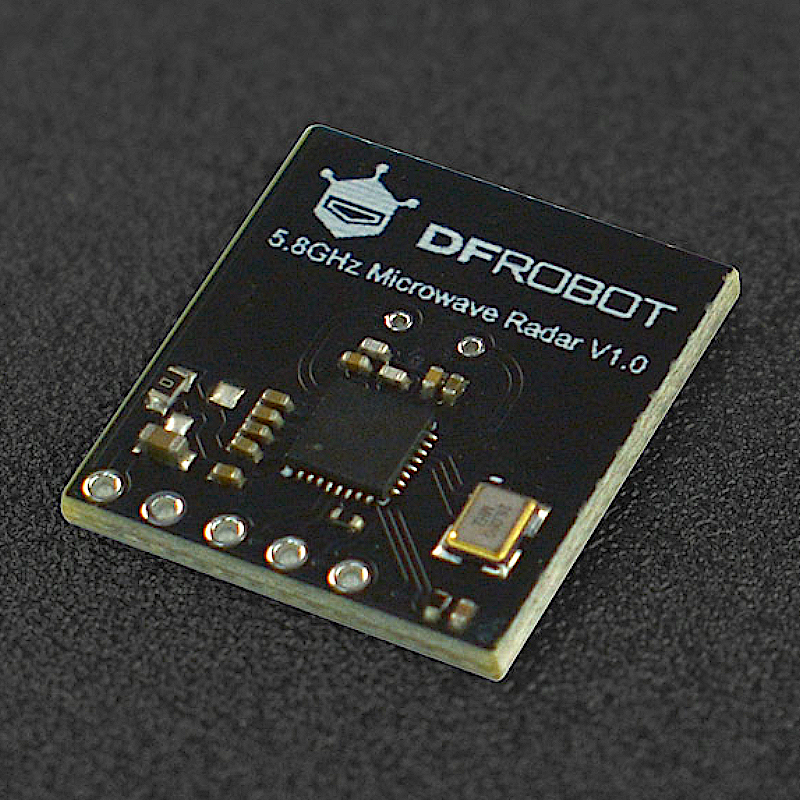

This microwave sensor is a microwave module that can transmit the electromagnetic wave of 5.8GHz. It can detect the difference between the transmitted wave and reflection wave to indentify whether there is an object moving in the detection area.
If you want to know more about this product, please check the Wiki Page.
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Introduction
This microwave sensor is a microwave module that can transmit the electromagnetic wave of 5.8GHz. It can detect the difference between the transmitted wave and reflection wave to indentify whether there is an object moving in the detection area.
Different from the traditional sensors that can only detect human presence by detecting big body movements, this microwave sensor can perform well in detecting small movements like breathing so as to determine human presence even if the person is sitting or sleeping. The detected result can be output through the serial port or high/low level of the I/O port.
Featuring high reliability and sensitivity, and strong anti-interference, it is small and easy to integrate, which can be widely used in fields that require motion detection, such as lighting, security, home, home appliances, hotels, garages, buildings, traffic, etc.
Wall Installation
Name | Description |
---|---|
R | Sensor serial receive |
T | Sensor serial transmit |
O | Output control signal |
- | GND |
+ | VCC |
High reliability
High sensitivity
Strong anti-interference
Lighting
Security
Home appliances
Hotels
Garages
Buildings
Traffic
Operating Voltage: 4.5~5.5V
Operating Current: 22mA
Detection Distance: 11m
Equivalent Transmission Power: 3-5dBM
Beam Angle: 120*120°
Modulation Mode: FMCW, CW
Operating Frequency: 5.8GHz
Operating Temperature: -40~85℃
Baud Rate: 115200
Dimension: 20*18mm/0.79*0.71"
5.8GHz Microwave Radar Module x1
