mmWave Radar - Human Presence Detection (9m)

:SEN05065
€24.07

This sensor is capable of detecting human presence up to 9m. Through its FMCW technology, this sensor is not affected by snow, dust, humidity and noise. Its supply voltage is from 3.6V to 5V which makes it compatible with Arduino and many other controllers.

If you want to know more about this product, please check the Wiki Page.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Introduction

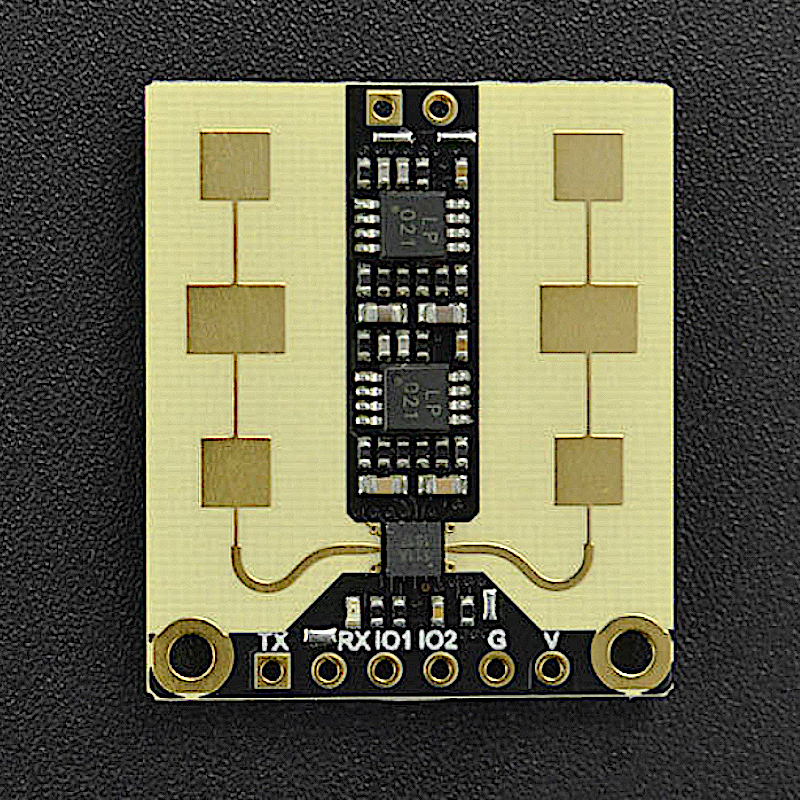

This 24GHz millimeter-wave radar sensor employs FMCW, CW multi-mode modulation, and separate transmitter and receiver antenna structure.

In working, the sensor first emits FMCW and CW radio waves to the sensing area. Next, the radio waves, reflected by all targets which are in moving, micro-moving, or extremely weak moving state in the area, are converted into electrical signals by the millimeter-wave MMIC circuit in the sensor system. After that, these signals will be sent to the processor and processed through the related signal and data algorithms. Then, the target information can be solved out.

smart home

The millimeter-wave radar sensor has the functions of human presence, human stillness and human motion perception. Compared with digital infrared motion sensor, millimeter-wave radar has higher accuracy for human detection in stationary states such as people sleeping and sitting, but the response speed of millimeter-wave radar is 2-4 seconds. If there are higher requirements for response speed and accuracy, millimeter-wave radar and digital infrared motion sensor can be used together. What's more, smart home can be realized through adding light sensors and temperature sensors, such as controlling lights, air conditioners and other furnitures.

The sensing results of the millimeter-wave radar can be output through the serial port or I/O port, and the sensor module has the characteristics of strong sensing reliability, high sensitivity, small size, easy to use, and easy to embed integration.

mmWave Radar - Human Presence Detection (9m)-Bottom installation

Bottom installation

mmWave Radar - Human Presence Detection (9m)-Horizontal installation

Horizontal installation

mmWave Radar - Human Presence Detection (9m)-Top installation

Top installation



Features

  1. Human presence sensing: sense if there is human body in areas.

  2. I/O port switch quantity input and output control

  3. Serial port input and output control

  4. Strong anti-interference ability, not to be affected by snow, haze, temperature, humidity, dust, light, noise, etc.



Specification

  1. Power Supply: 3.6~5V

  2. Operating Current: 90mA

  3. Detection Distance: 9m

  4. Equivalent Transmit Power: 9-12dBM

  5. Beam Angle: 100*40°

  6. Modulation Mode: FMCW, CW

  7. Operating Frequency: 24GHz

  8. Operating Temperature Range: -40~85℃

  9. Baud Rate: 115200

  10. Dimension: 24*28mm/0.94*1.10"
