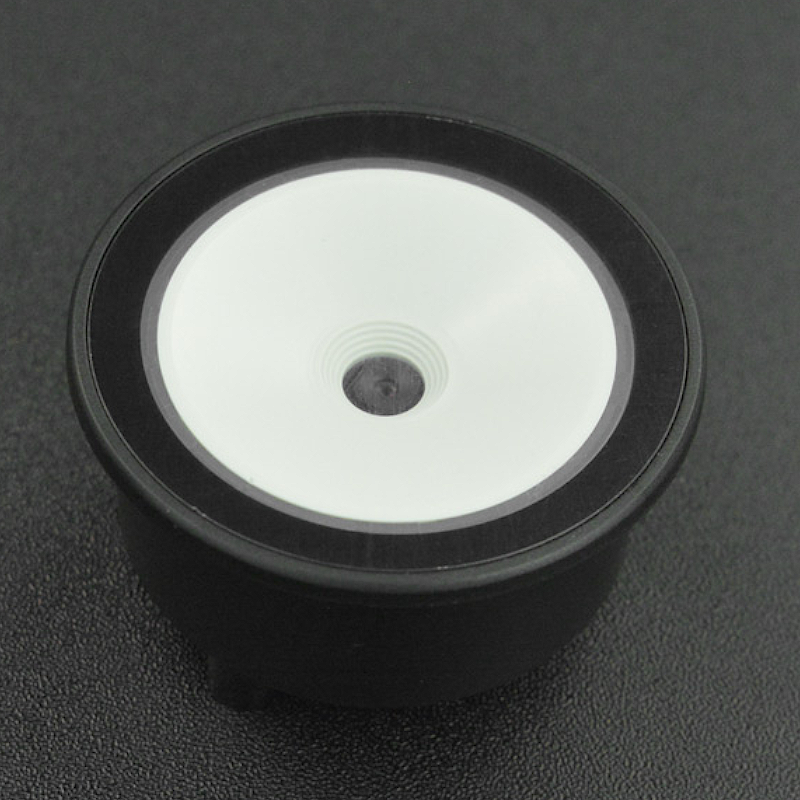

GM73 Barcode & QR Code Scanning Module - DFRobot SEN0544

:SEN04065
€44.31

The GM73 code reader module is a high-performance code scanner that can capture common 1D and 2D codes like Barcode and QR on labels, papers, or even screens at a high speed of about 1s.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Introduction

The GM73 code reader module is a high-performance code scanner that can capture common 1D and 2D codes like Barcode and QR on labels, papers, or even screens at a high speed of about 1s.


The module comes with superior reading performance utilizing advanced decoding algorithms based on smart image recognition, which is able to read all kinds of codes accurately. The scanner allows users to configure parameters by scanning setup codes, greatly reducing development difficulty. Besides, it has onboard micro USB and UART and can be conveniently embedded into various devices like self-service vending machines, metro gates, access control, checkout counter, and so on.





Features

  1. Smart image recognition

  2. Capture speed of about 1s

  3. Onboard micro USB and UART



Applications

  1. Self-service vending machine

  2. Metro gate

  3. Access control

  4. Checkout counter



Specification

  1. Sensor: 640*480 CMOS

  2. Illumination: white LED

  3. Focus: red LED

  4. 1D Codes Supported: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, MSI-Plessey, GS1 Databar, Code 11, Industrial 25, Standard 25, Matrix 2 of 5

  5. 2D Codes Supported: QR Code, Data Matrix, PDF417

  6. Reading Accuracy: ≥5mil

  7. Depth of Field: 30-150mm (Starting from the front camera, the mobile phone screen size of 5.2”)

  8. Scanning Angle: intersection angle 360°, elevation ± 55°, deflection angle ± 55°

  9. Viewing Angle: Inclination 60°, Elevation 46°

  10. Contrast: ≥25%

  11. Interface: TTL-232, USB

  12. Dimension: about 30*24*7mm /1.18*0.94*0.28”

  13. Operating Voltage: DC 5V

  14. Operating Current: ≤180mA

  15. Ambient Light: 0~10000lux

  16. Operating Temperature: -20℃~50℃

  17. Storage Temperature: 40℃~70℃

  18. Operating Humidity: 5%~95% (Non-condensing)



Shipping List

  1. GM73 Barcode & QR Code Scanning Module x1

  2. USB Cable x1

  3. TTL Adapter x1

SEN04065
