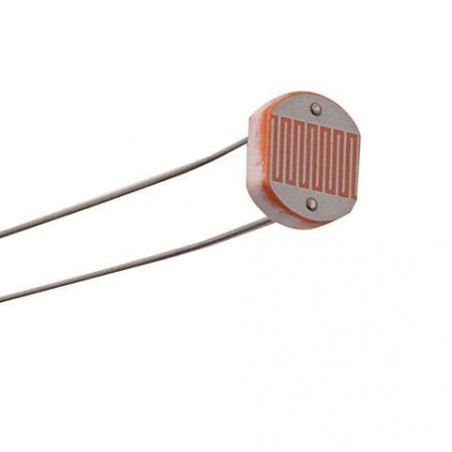

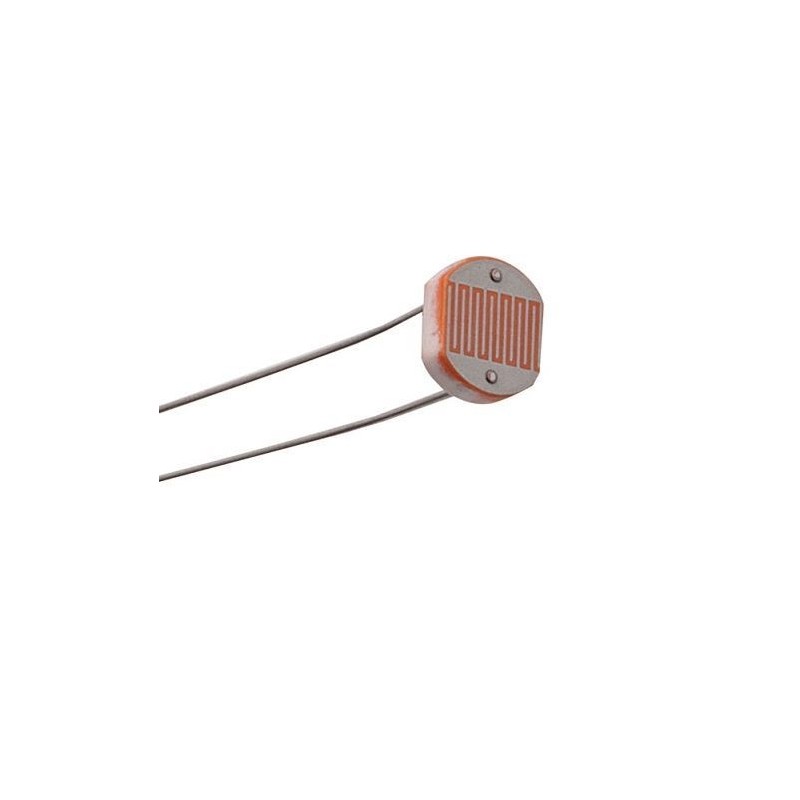

LDR 5528 VT90N2 5MM - 10K~20K OHM

This is a regular 5mm light sensor. A photocell changes (also called a photodetector, CdS or photoconductive cell) resistance depending on the amount of light it is exposed to. These little sensors make great ambient light triggers (when light in the room turns on, do something).



Light resistance (10Lux) : ~10~20K Ohm

Dark resistance : 1M Ohm

Max voltage : 150V

Max power: 100mW

Spectral Peak: 540nm

Model: 5528

5mm LDR (1.8 x 4.5 x 5mm)

4mm between pins

30mm lead length
