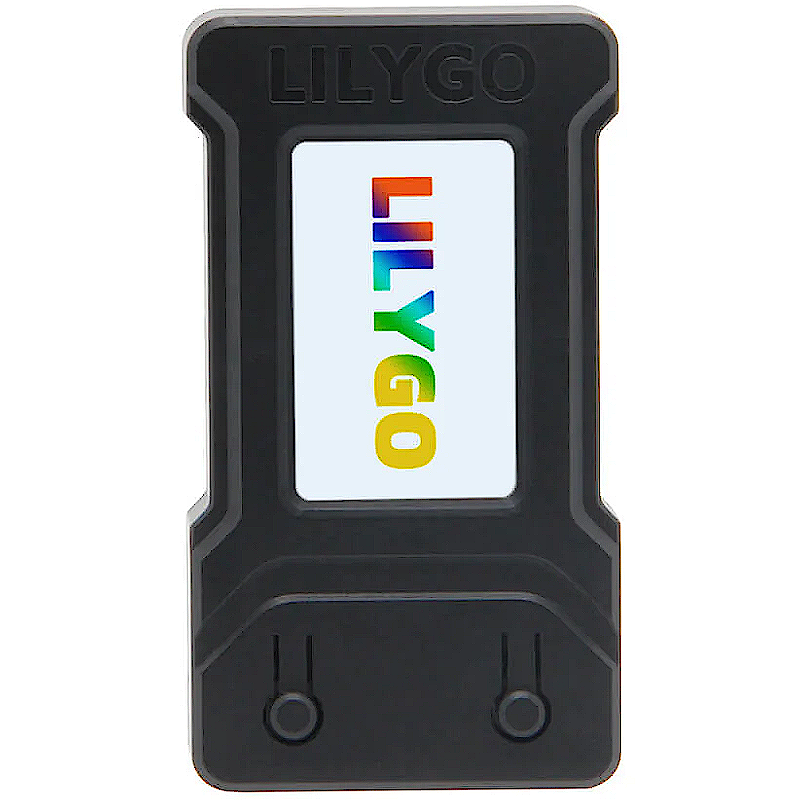

T-DISPLAY TTGO ESP32 16MB (Not Solder Headers) 1.14 DISPLAY USB-C W/ Shell - LILYGO® K164

: PCO05152
€24.90
Tax included

A basic development board with LCD, and a built-in ESP32 chip as master control, supports daily entry-level programming.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



More info and updated documentation on LilyGo product page (T-Display [K164])



Specifications

MCU  ESP32 Xtensa dual-core LX6 microprocessor
Wireless Connectivity  Wi-Fi 802.11 b/ g/ n, BL V4.2+BLE
Programming Platform  Arduino-ide、Micropython
Serial chip CH9102
Optional Flash: 4M/16M
Onboard functions Buttons: l006+I007, battery power detection



Description

For 1.14 inch ST7789V IPS LCD

  • Resolution: 135 x 240
  • High Density 260 PPI
  • 4-Wire SPI interface
  • Working Power Supply: 3.3V
  • 1.14" diagonal
  • Full-color TFT Display
  • Drive: ST7789

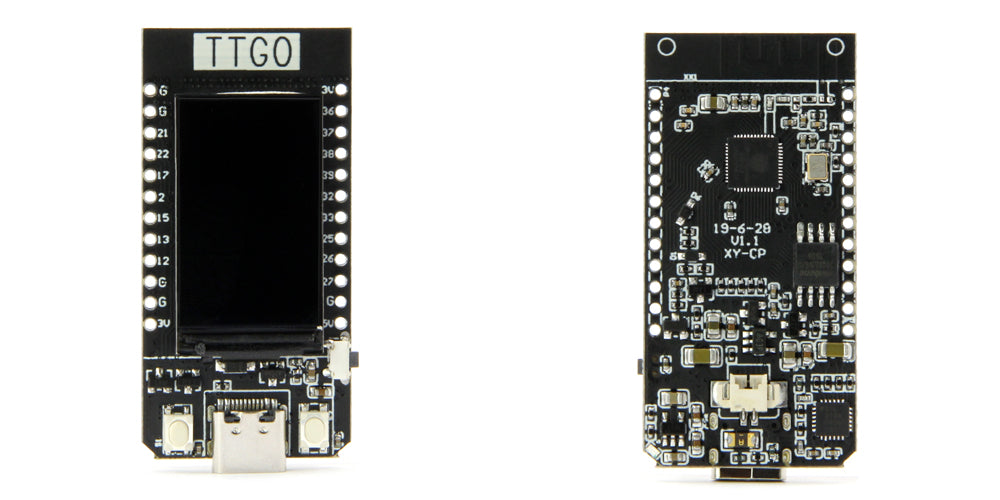

1. Appearance

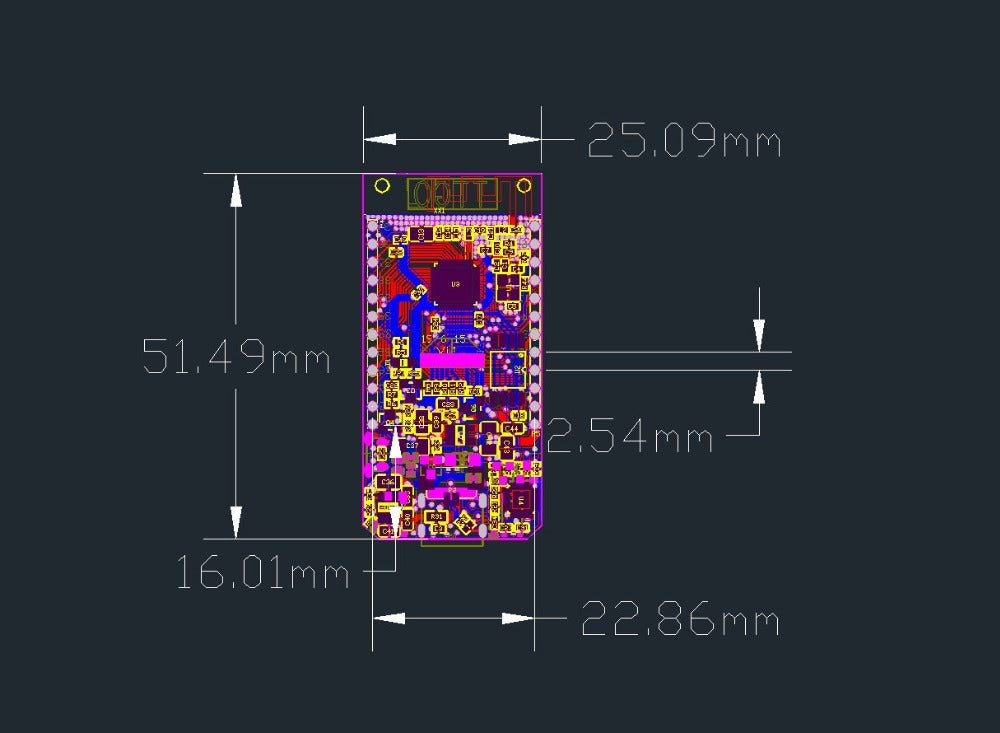

2. Size

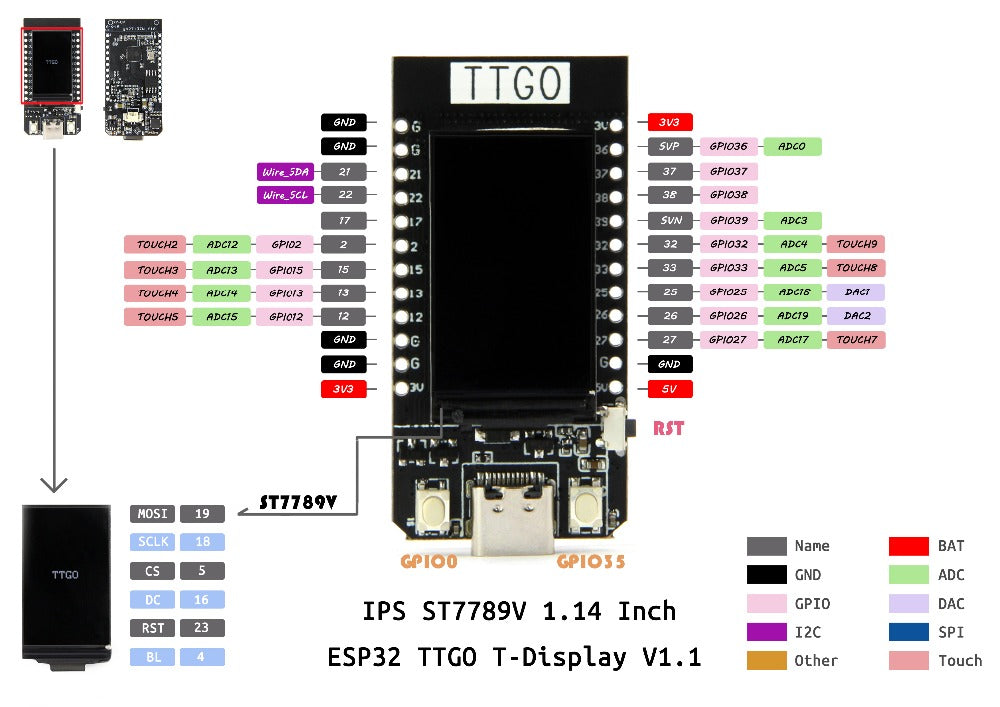

3. Pin diagram





T-Display CH9102F Chip [4MB/ 16MB ]Options

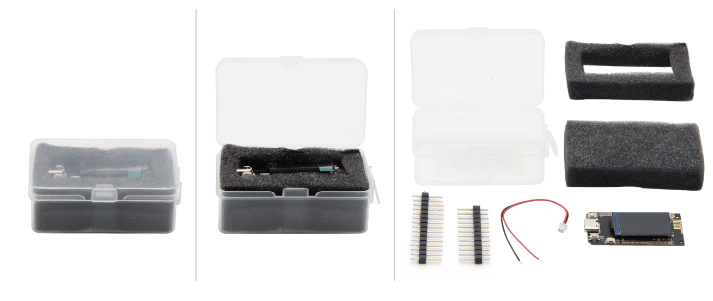

  • 1 X TTGO T-Display
  • 1 X Power Cable
  • 2 X Pin

Technology Support

You can also get more technical support on GitHub

Quick start

  1. Copy TFT_eSPI to the <C:\Users\Your User Name\Documents\Arduino\libraries> directory
  2. Open Arduino IDE, find TFT_eSPI in the file, and for example, the T-Display factory test program is located at TFT_eSPI -> FactoryTest, you can also use other sample programs provided by TFT_eSPI 3 In the Arduino IDE tool options, select the development board ESP32 Dev Moduleselect Disable in the PSRAM optionselect 4MB in the Flash Size option, Other keep the default
  3. Select the corresponding serial port. If you are not sure, please remove all the serial ports, leaving the board in the USB connection state, just select that one
  4. Finally, click upload, the right arrow next to the tick

SD card connection

Demonstrate how to use the second SPI device, using the SD card as a demonstration device


Name V18
TFT Driver ST7789
TFT_MIS N/A
TFT_MOSI 19
TFT_SCLK 18
TFT_CS 5
TFT_DC 16
TFT_RST N/A
TFT_BL 4
I2C_SDA 21
I2C_SCL 22
ADC_IN 34
BUTTON1 35
BUTTON2 0
ADC Power 14
PCO05152
