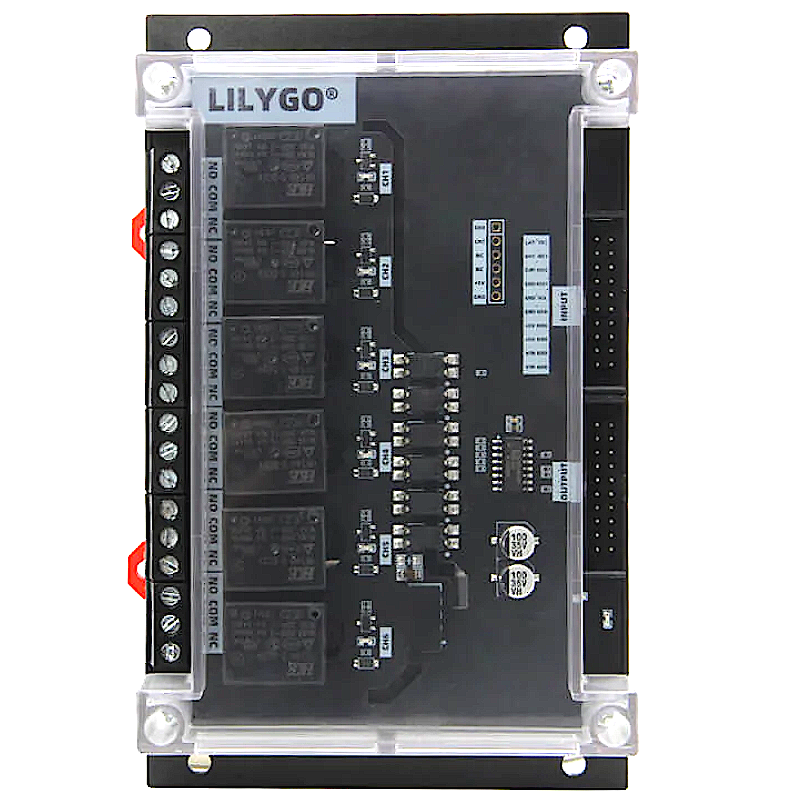

T-Relay-Chain 6-Relay Module DIN Rail (expansion to T-Relay S3) - LILYGO® H630

:MRE03054
€21.14

Expansion module for T-Relay S3 with ESP32-S3

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



More info and updated documentation on LilyGo product page (T-Relay Chain [H630])



Note: this module dont bring any controller chip



To be used with module PCO05140 T-Relay S3

 ____________________________________________________________________________________________________________________

Specifications

2 X 10PIN Expansion Seat, LCD connection PIN

MCU
FLASH
PSRAM
Wireless
Onboard Functions  Relays X 6, Reset + Boot Button

____________________________________________________________________________________________________________________

____________________________________________________________________________________________________________________

Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

T-Relay S3

____________________________________________________________________________________________________________________

Size

T-Relay Chain

Pin Daigram

T-Relay Chain

More Details

T-Relay Chain



MRE03054
