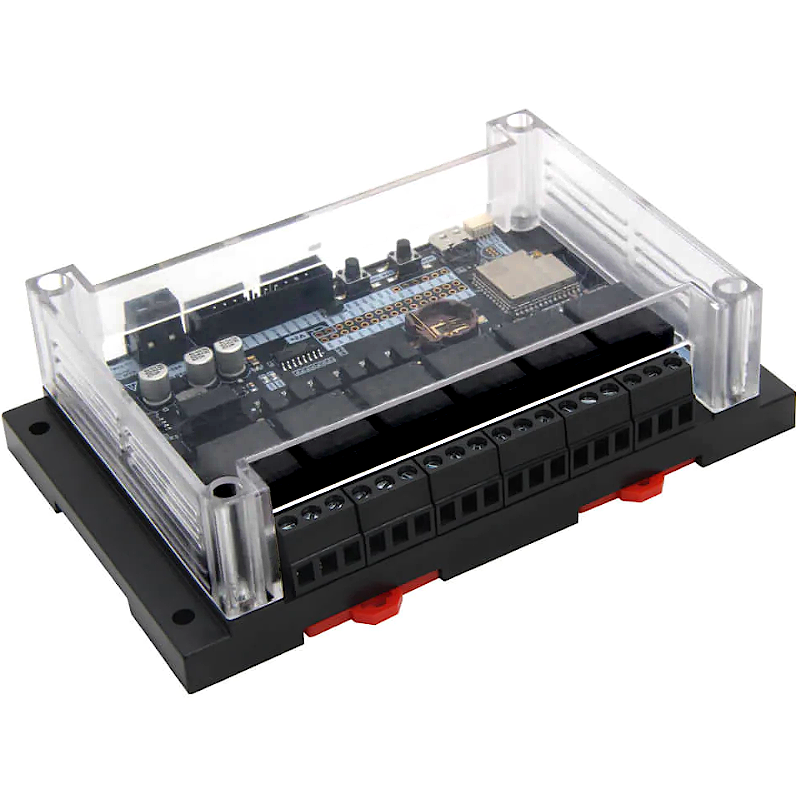

T-Relay S3 ESP32-S3 6-way Relay Module DIN Rail Mount (expandable) Opto Isolation w/ RTC and acrilic case - LILYGO® H629

:PCO05140
€41.50
Tax included

T-Relay S3 relay module with ESP32-S3

 Battery for RTC not included _ BAT03011
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



More info and updated documentation on LilyGo product page (T-Relay S3 [H629])



Can be used with the expansion module MRE03054 T-Relay-Chain

 ____________________________________________________________________________________________________________________

Specifications

2 X 10PIN Expansion Seat, LCD connection PIN

MCU ESP32-S3-WROOM-1U Xtensa® dual-core 32-bit LX7
FLASH 16MB
PSRAM 8MB
Wireless Wi-Fi: 802.11 b/g/n; Bluetooth LE: Bluetooth 5
Onboard Functions  Relays  (HRS4H-S-DC5V-C ) X 6, Reset + Boot Button

____________________________________________________________________________________________________________________

____________________________________________________________________________________________________________________

Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

T-Relay S3

____________________________________________________________________________________________________________________

Size

T-Relay S3

Pin Daigram

T-Relay S3

More Details

T-Relay S3





PCO05140
