High precision Capacitive Fingerprint Reader (B), UART/USB dual ports - Waveshare 20679

: SEN13021
€35.00
Tax included

The Capacitive Fingerprint Reader (B) is a fast and stable capacitive fingerprint module specialized for secondary development, and suits integration applications.

If you want to know more about this product, please check its Wiki Page.

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Product description: Capacitive fingerprint reader (B) - UART/USB - Waveshare 20679

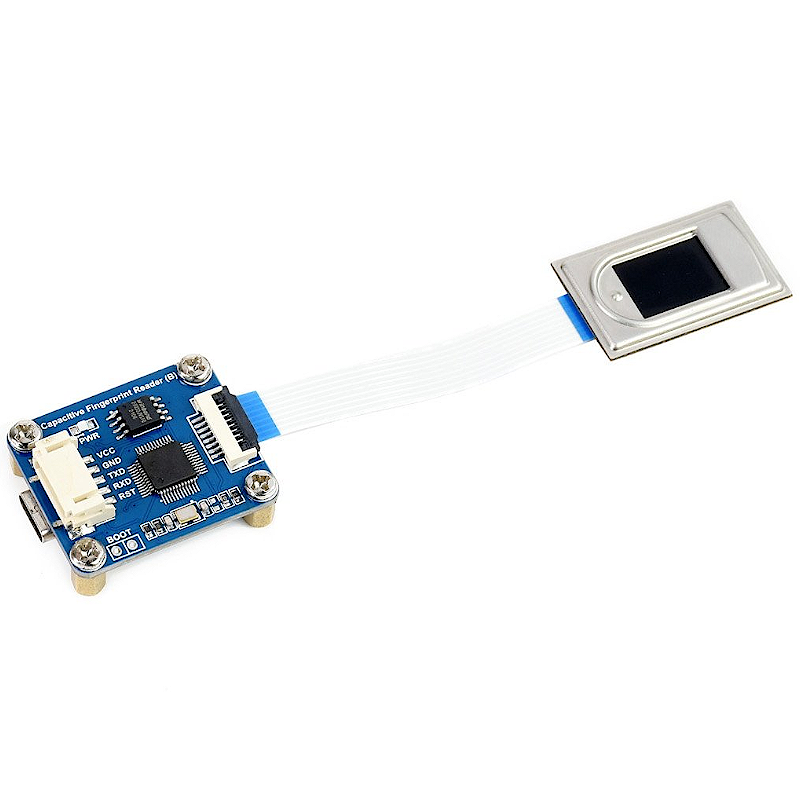

A capacitive fingerprint reader developed by Waveshare. The reader module is equipped with a connector microUSB and UART interface. It is based on a high performance Cortex processor with commercial high security fingerprint algorithms and an advanced solid state fingerprint sensor. The module is designed as an intelligent module to extend the capabilities of the design with fingerprint capture, image processing, template generation and storage, matching and fingerprint search. Powered by 3.3 V to 5 V.



Main features of the fingerprint reader module

  1. Easy to use with a few simple commands

  2. Commercial fingerprint algorithm, stable performance, fast identification

  3. Sensitive detection, just lightly touch the identification area, no pressure

  4. Allows free input / output of fingerprint images, fingerprint function files and other fingerprint activities

  5. Dual communication, UART or USB



Connection of the module

Module is equipped with microUSB port and 5-pin connector for UART communication. It is powered by 3.3 V or 5 V. Its leads are:

  1. VCC - supply voltage 3.3 V or 5 V

  2. GND - ground

  3. TX - UART transmitter line

  4. RX - UART receiver line

  5. RST - RESET pin



Specification of fingerprint reader

Sensor

Semiconductor (capacitive)


DPI 508

Resolution

208 x 288 px

Greyscale

256 (8-bit)

Measuring area

14.6 x 10.6 mm

Fingerprint capacity

3000

Security Level

1-5 configurable, 3 by default, higher value, lower FAR (False Acceptance RATE) but higher FRR (False Rejection Rate)

Encryption Key

64-bit

Image Acquisition Rate

20 fps

Match time

0,5 s

Current consumption

up to 40 mA

Power supply voltage

3.3 V or 5 V

Communication port

USB or UART

ESD

SD IEC 61000-4-2 LEVEL 4 positive/negative air discharge 15KV

Transmission rate

configurable: 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600 bps
115200 bps default

Module dimensions

34 x 28.5 mm

Sensor dimensions

33.4 x 20.4 mm



Useful links

  1. Manufacturer's website: Waveshare 20679

  2. Wiki Page



Outline dimensions




Package Content

Weight: 0.017 kg

  1. Capacitive Fingerprint Reader (B) x1
  2. PH2.0 5PIN wire x1





SEN13021
