BNO055 - 9 axis absolute orientation sensor

Tax included

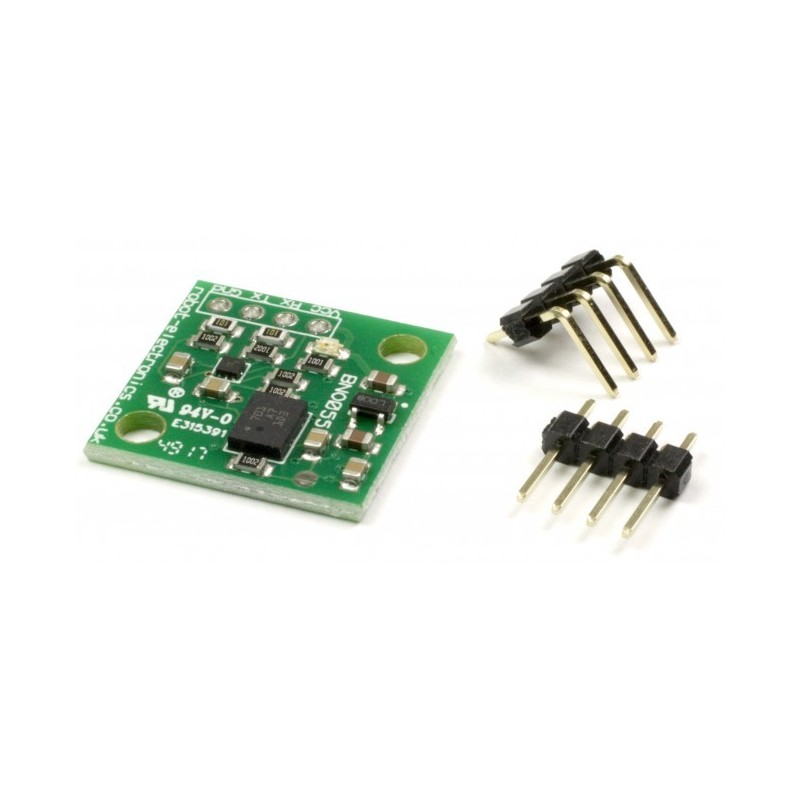

Based around the fantastic BNO055 9 axis absolute orientation sensor from Bosch our module offers supply regulation and comms level translation, this means the module will work fine with any voltage between 3.3V and 5V. Default mode is serial communication, but this is easily changed to I2C with by closing a link on the board.


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Heading - Simple to read tilt compensated angle
Quaternion - 4 vectors for more accurate requirements
Eular angles - 3 angles with reference to x,y and z axis
Rotation vector - angular velocity from the gyro
Linear acceleration - 3 axis of acceleration due to movement
Gravity - 3 axis of acceleration due to gravity
Temperature - output in °C

Serial communication is 115,200bps 8N1 (8 bit, no parity and 1 stop bit)
I2C communication is with a slave address of 0x50 (0x28 7 bit) and clock rate of upto 400khz

Module is supplied with straight and right angle connectors.
