3.5inch Touch Display Module for Raspberry Pi Pico , SPI

:LCD01152
€29.90
Tax included

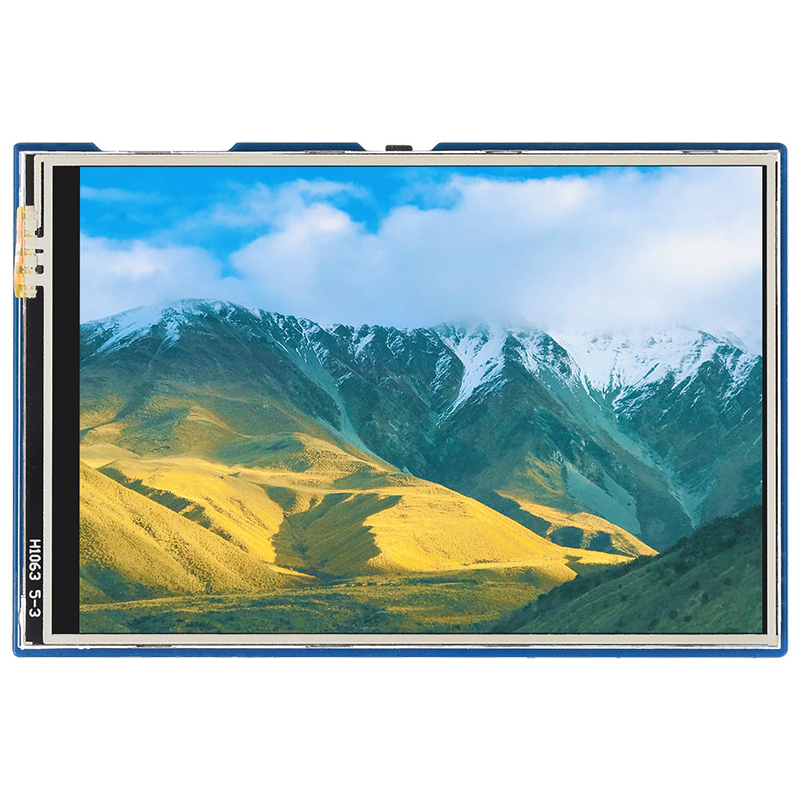

3.5inch Touch Display Module For Raspberry Pi Pico, 65K Colors, 480 x 320 Pixels, Resistive Touch Controller XPT2046, ILI9488 Driver, Using SPI Bus.

If you want to know more about this product, please check the Wki Page.

Note: Raspberry Pi Pico not included.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.




Features at a glance

  1. 480×320 resolution, IPS screen, 65K colors, clear and colorful displaying effect

  2. Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions

  3. MicroSD card slot for storing images and direct displaying them easily

  4. Programmable backlight control, power saving

  5. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)



Specifications

Operating voltage

5V

Resolution

480×320 pixels

Communication Interface

SPI

Display size

73.44 × 48.96 mm

Display Panel

IPS

Pixel size

0.153 × 0.153 mm

Driver

ILI9488

Dimensions

86.00 × 57.20 mm

Touch Controller

XPT2046







Raspberry Pi Pico header compatibility

onboard female pin header for direct attaching to Raspberry Pi Pico


Raspberry Pi Pico is NOT included.




What's On Board


  1. Rapsberry Pi Pico header

  2. CAT6219
    LCD backlight power chip

  3. RT9193-33
    3.3V linear voltage regulator

  4. Pico reset button

  5. MicroSD card slot

  1. XPT2046
    resistive touch controller

  2. 74HC4040
    counter chip, for clock frequency division

  3. 74HC04D
    inverter chip

  4. 74HC4094
    serial data to parallel data converter




Pinout definition


Outline dimensions
