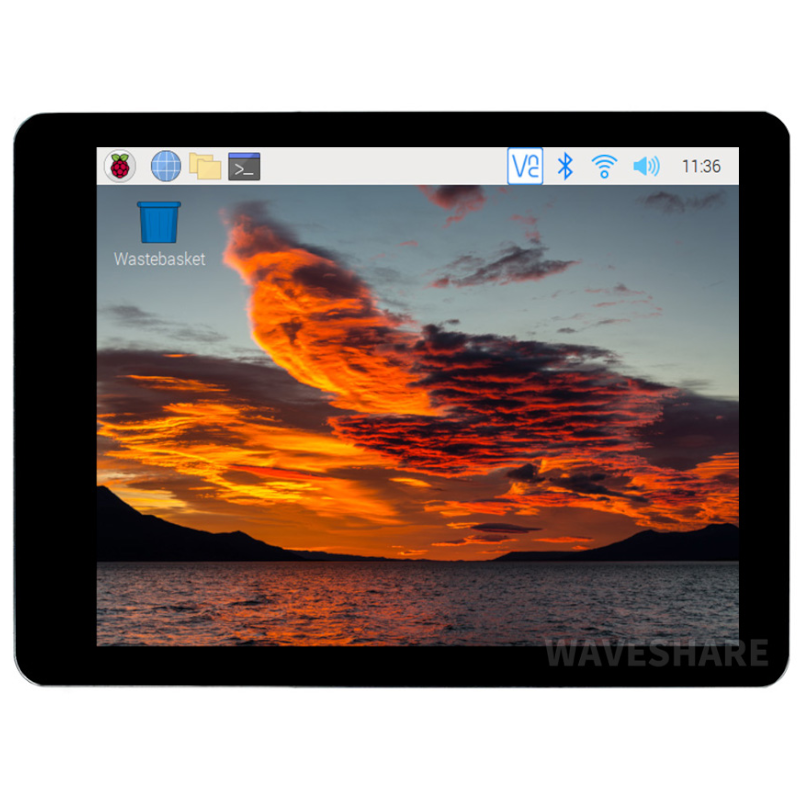

2.8inch Capacitive Touch Display for Raspberry Pi, 480×640, DSI, IPS, Optical Bonding Screen - Waveshare 22028

:LCD01153
€47.90
Tax included

If you want to know more about this product, please check the Wki Page.

Note: Raspberry Pi not included.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

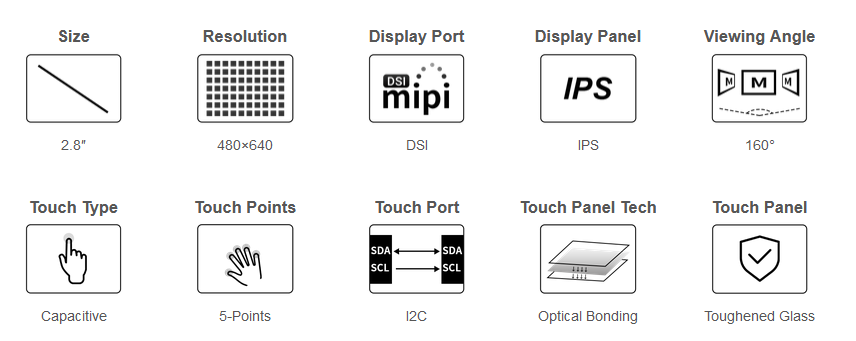

The display orientation is portrait by default, 480×640 resolution (H×V). Change the software config for landscape display.




Device & System Support




Raspberry Pi Supports Raspberry Pi OS, 5-points touch, driver required

Support Pi 4B/3B+/3A+, CM3+/4 must be used with DSI-Cable-15cm.



Connection Examples

Working with Raspberry Pi 4


Working with Raspberry Pi 3B+














Display

IPS Panel




Touch Control

Touch-Screen-Top-C5T.jpg Touch-Screen.jpg

1) up to 5-points touch, depending on the operating system.

2) up to 6H hardness toughened glass panel.

3) Optical Bonding screen, better display experience, dust-proof.



Appearance and Dimensions




Resources & Services

Wiki: 2.8inch_DSI_LCD



Package Content

Weight: 0.043 kg

  1. 2.8inch DSI LCD x1
  2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x2
LCD01153
