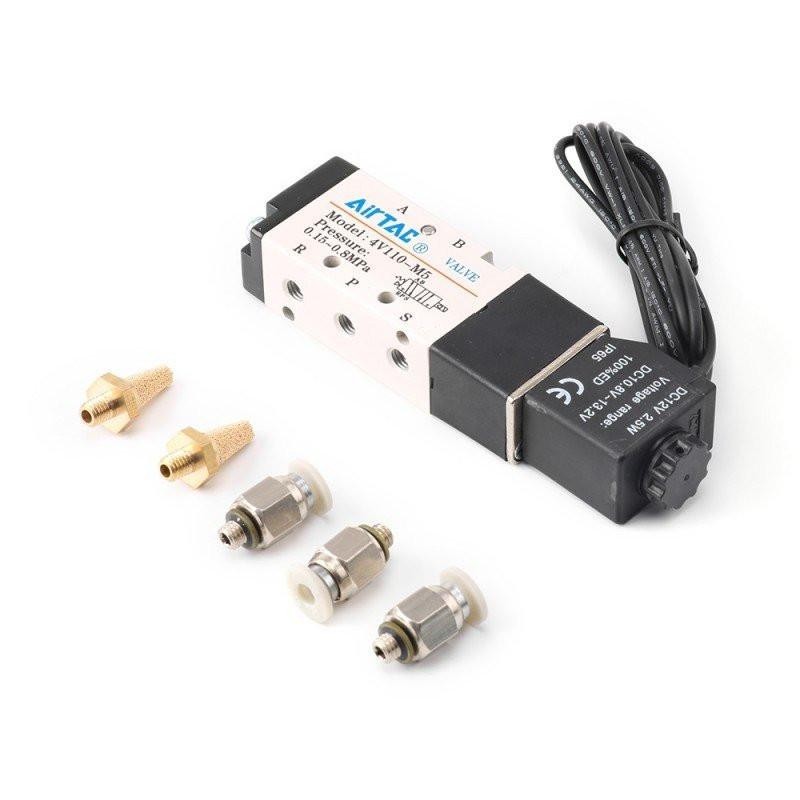

Makeblock - Electroválvula pneumática (5/2way)

:MOT09001
47,95 €
preço com IVA incluído

A válvula solenoide 5/2 vias é normalmente usada com um atuador pneumático de dupla ação. Controla a direção positiva ou negativa do movimento via ativação / desativação.

A válvula solenóide de 5/2 vias vem com furo reto rosqueado M5 e funciona bem com o tubo de ar pneumático φ4.

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description:

The 5/2way solenoid valve is usually used with a double-acting pneumatic actuator. It controls positive or negative direction of movement via powering on/off.

The 5/2 way solenoid valve comes with M5 threaded straight hole and works well with φ4 pneumatic air tube.

Features:

  • Suitable for M5 screw & φ4 air tube;
  • Press range varying from 0.15 to 0.8 Mpa;
  • Flow Cv=0.31;
  • Working temperature: -20 to 70℃;
  • Maximum movement frequency: 5 times per second.

Size Chart (mm):

  1. Product Dimension Height/Width/Length: 90 x 26 x 18 mm (3.54 x 1.02 x 0.71 inch)
  2. Package Dimension Height/Width/Length: 110  x 150 x 18 mm (4.33  x 5.91 x 0.71 inch)



Part List:

1 x Solenoid Valve (3/2way) 3V110M5NCFI

1 x General Copper Silencer

1 x φ4 Straight Connector
