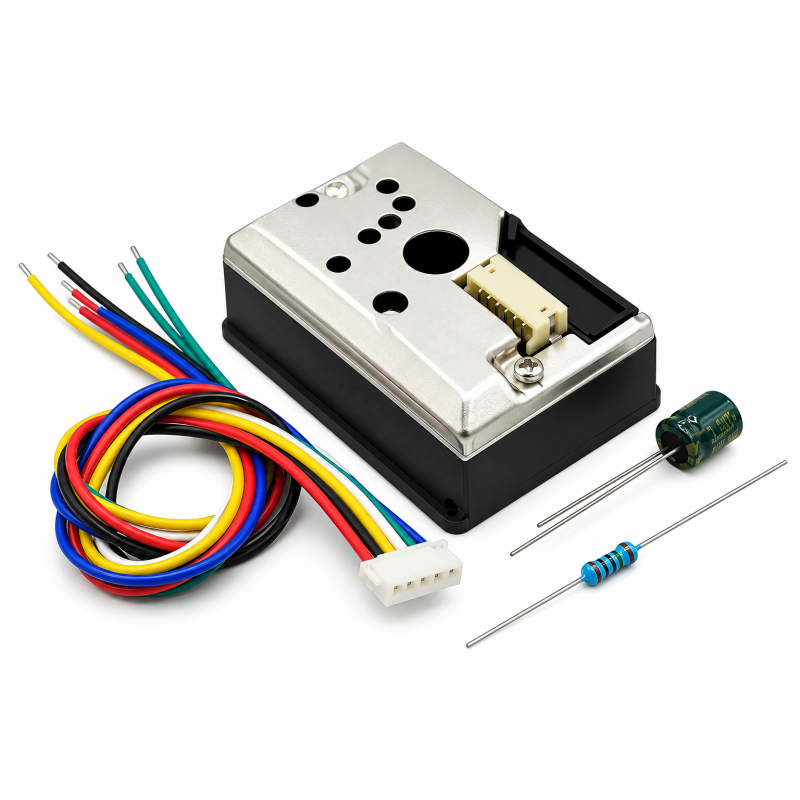

GP2Y1014AUOF Dust Sensor

: SEN12022
€9.90
Tax included

GP2Y1014AU0F optical dust sensor featuring an integrated infrared LED and photodetector for detecting airborne dust particles. The sensor provides an analog voltage output proportional to dust concentration, making it suitable for air-quality monitoring, air purifiers, HVAC systems and microcontroller-based projects.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



The GP2Y1014AU0F is an optical dust sensor from Sharp designed to detect airborne particles using an infrared LED and photodetector.

The sensor detects particles by measuring reflected infrared light. The internal signal-processing circuit produces an analog voltage output corresponding to the detected dust concentration.

Compared with other sensors in the GP2Y10 family, the GP2Y1014AU0F is specified as a higher-precision model, with a sensitivity of 0.5 V / (0.1 mg/m³) and ±15% sensitivity accuracy.



Technical specifications

Manufacturer Sharp
Model GP2Y1014AU0F
Type Optical dust sensor
Technology Infrared
Emitter Infrared LED
Detector Photodetector
Output Analog
Sensitivity 0.5 V / (0.1 mg/m³)
Sensitivity accuracy ±15%
Supply voltage 4.5–5.5 V DC
Nominal voltage 5 V DC
Typical current 11 mA
Maximum current 20 mA
Operating temperature -10 to +65 °C
Storage temperature -20 to +80 °C
Dimensions 46.0 × 30.0 × 17.6 mm
Connector 6-pin
Mounting Chassis mount
Signal output Analog voltage
Sharp part number GP2Y1014AU0F
RoHS Yes



Pinout

PinNameFunction
1 V-LED IR LED supply
2 LED-GND LED ground
3 LED LED control input
4 S-GND Sensor ground
5 Vo Analog output
6 Vcc Sensor supply



Applications

  • Air-quality monitoring
  • Dust detection
  • Smoke detection
  • Air purifiers
  • HVAC systems
  • Ventilation systems
  • Environmental monitoring
  • Arduino projects
  • ESP32 projects
  • Automation systems
  • DIY electronics
  • Robotics
  • Measurement equipment
