2 Channel USB Relay Module

:MRE06012
€8.90

This is a HID USB relay module that you can use to control directly from a PC USB port.

On the following link you could find more information: https://github.com/pavel-a/usb-relay-hid



Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

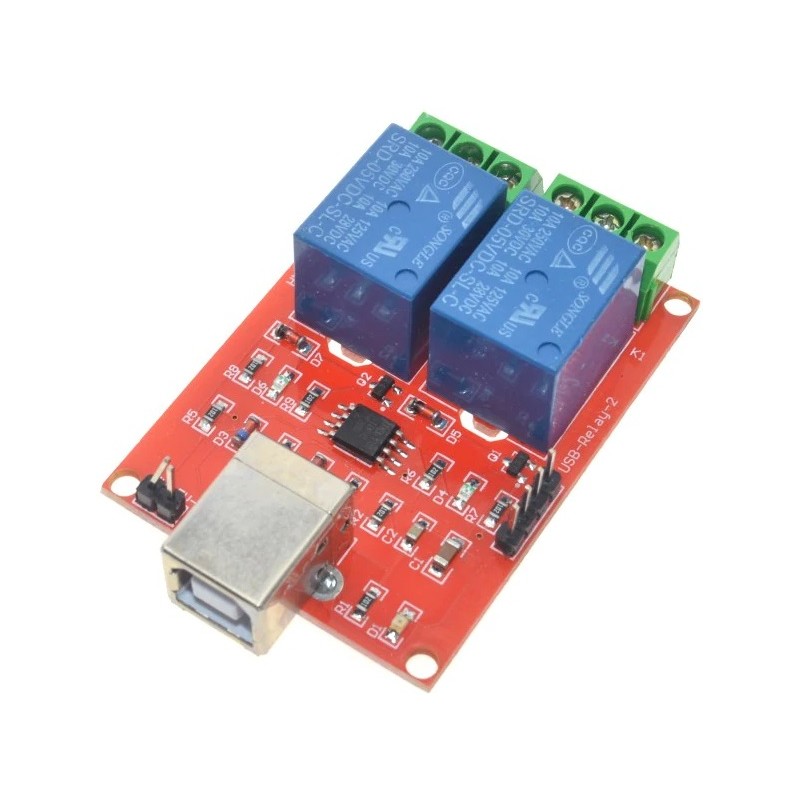

This is USB controlled relay Board with 2 channels. It's used the HID technology, so no need to install any driver in windows system and you can easy to use. On the following link you could find more information about how to program this board: https://github.com/pavel-a/usb-relay-hid
The relay can control the maximum voltage 250V, 10A AC load and 30V, 10A DC load
Support WIN7, XP 32 -bit systems

This module can be used for:
-Home automation
-Robotics Control
-Control doors and windows via windows system
-Control power supply from a PC
PCB SIZE: 56.5x40mm

Module Parameter

Relay Type

Songle 5V Relay

Relay QTY

1

Contack Type

NC/ COM/ NO

Input Voltage

DC 5V

Input Current

300mA


MRE06012
