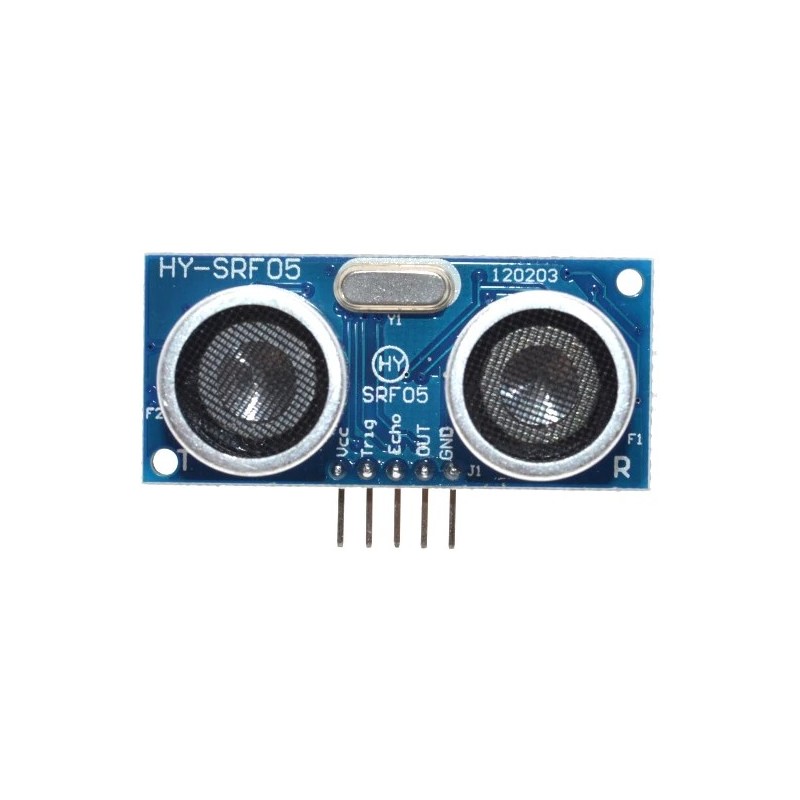

HY-SRF05 Ultrasonic Distance Sensor Module

:SEN07019
€6.80
€5.50 Save €1.30
Tax included

The ultrasonic sensor measures the distance of the nearest object, sending the result to the serial port. It can work from 2 cm to 4 m. It measures the time spent by the signal to reach the object and return to the sensor.

Connections:

  • Vcc -> 5 V
  • Trig -> pin 13 (digital pin)
  • Echo -> pin 12 (digital pin)
  • Out ->
  • GND -> GND

Tutorial

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

The ultrasonic sensor measures the distance of the nearest object, sending the result to the serial port. It can work from 2 cm to 3 m. It measures the time spent by the signal to reach the object and return to the sensor.



Tutorial



Connections:

  • Vcc -> 5 V
  • Trig -> pin 13 (digital pin)
  • Echo -> pin 12 (digital pin)
  • Out ->
  • GND -> GND

Connections

SEN07019
