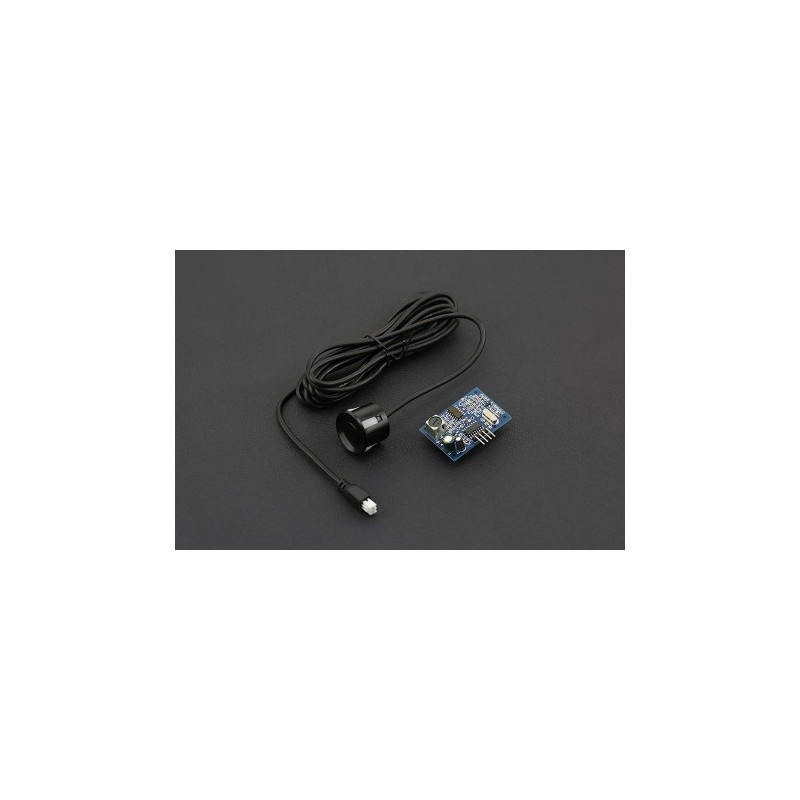

Weatherproof Ultrasonic Sensor with Separate Probe

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Board Overview

LABEL NAME FUNCTION 1 5V Power Input + 2 Trig Trigger Signal 3 Echo Echo Signal 4 GND GND

SPECIFICATION

• Operating voltage: DC5V
• Static current: 5mA
• Operating current: 30mA
• Operating range: 25cm ~ 4.5m
• Resolution: 0.5cm
• Detecting Angle: < 70°
• Operating Temperature: -10 ~ 70°C
• Cable Length: 2.5m
• Dimension: 41mm * 28.5mm/1.61*1.12 inches
• Weight: 54g

Arduino Sample Code:

# define ECHOPIN 2 // Pin to receive echo pulse
# define TRIGPIN 3 // Pin to send trigger pulse

void setup() {
    Serial.begin(9600);
    pinMode(ECHOPIN, INPUT);
    pinMode(TRIGPIN, OUTPUT);
    digitalWrite(ECHOPIN, HIGH);
}

void loop() {
    digitalWrite(TRIGPIN, LOW); // Set the trigger pin to low for 2uS
    delayMicroseconds(2);
    digitalWrite(TRIGPIN, HIGH); // Send a 10uS high to trigger ranging
    delayMicroseconds(10);
    digitalWrite(TRIGPIN, LOW); // Send pin low again
    int distance = pulseIn(ECHOPIN, HIGH, 26000); // Read in times pulse
    distance = distance / 58;
    Serial.print(distance);
    Serial.println("   cm");
    delay(50); // Wait 50mS before next ranging
}
