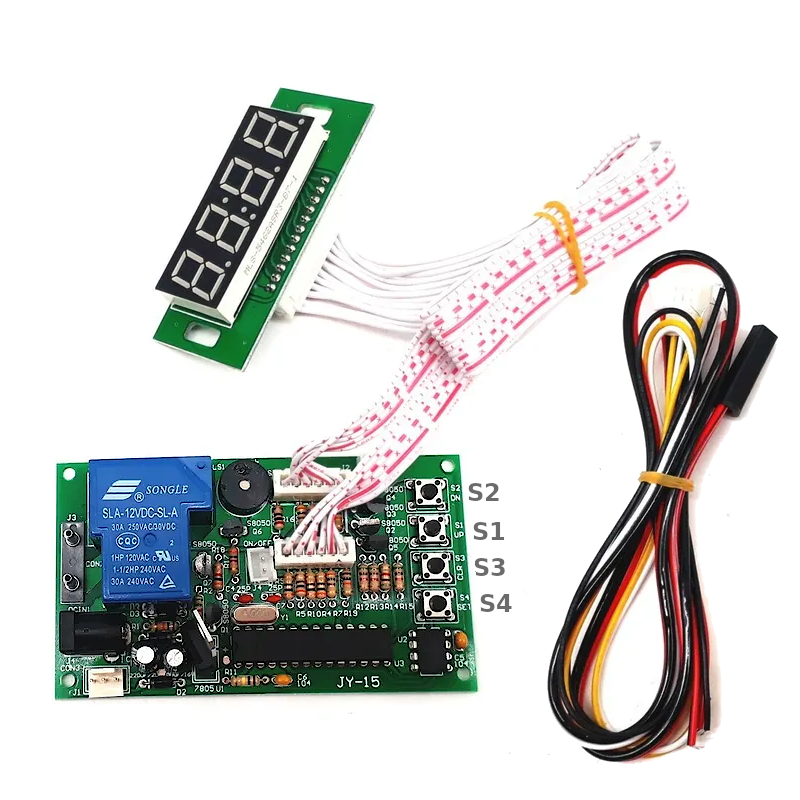

Timer Controller Board for Coin Acceptor

• Timer Control Board with coin acceptor(6 kind coins)
• Input Voltage:DC+12V
• Standby:Display shows:00:00, reply: Normal Open (NO)
• Accumulated time:Yes, add time if receive signals again when time is running
• Max current load: 15A

How it works:

Mode 1:
Time starts counting after receiving input signals → the display shows the remaining time and supplies power to the device → power is cut off when time runs out.

Mode 2 (button activation):
The display shows the remaining time after receiving input signals → press the button to start → time starts counting and supplies power to the device → power is cut off when time runs out.

Pause (button activation):
Press the pause button: power is cut off during the pause, and the display shows the remaining time. Power is resumed after pressing the pause button again.

Configuration:

Please follow the DISPLAY CODE/TABLE and use buttons "S1" and "S2" to set the values.

INPUT SIGNAL QUANTITY AND TIME

• Press button "S4". Symbol “B” will blink. Set the NUMBER OF INPUT SIGNALS required to activate the device (01–50).

• Press button "S4". Symbol “A” will blink. Set the TIME (01–99).

• Press button "S4". Symbol “B” will blink again. Set the TIME again (01–99).

• Press button "S4" 4 times.

• Set the TIME for the Warning Sound.

• Press button "S4" to finish.

Mode Setting

Follow the table to configure the operating function:

• Press and hold buttons "S1" and "S2" simultaneously for 3 seconds to enter MODE SETTINGS.

• Use buttons "S1" and "S2" to set the CODE number.

• Press button "S4" to move to the next code.

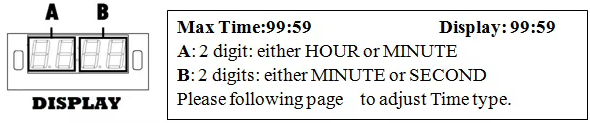

DISPLAY CODE / TABLE
