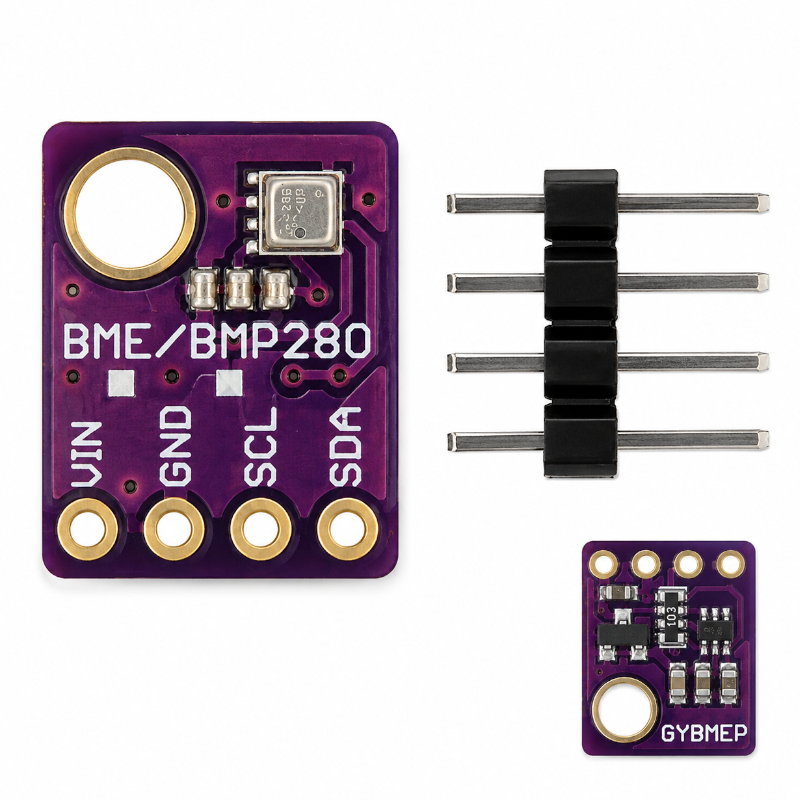

BME280 5V I2C or SPI Temperature Humidity Pressure Sensor

: SEN06096
€9.50
Tax included

High-precision BME280 sensor module for measuring temperature, relative humidity and atmospheric pressure, with 5 V power supply and I2C or SPI communication. Ideal for Arduino, ESP32, ESP8266, Raspberry Pi and IoT projects.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

The BME280 is a 3-in-1 environmental sensor capable of measuring temperature, relative humidity and atmospheric pressure using a single module.

The module supports both I2C and SPI communication, allowing easy integration with microcontrollers and single-board computers. This 5 V module can be used with 3.3 V or 5 V systems thanks to its integrated level conversion.

It is suitable for environmental monitoring, weather stations, altimeters, automation, home automation, robotics and IoT projects.

Key Features

Feature Specification
Sensor BME280
Type Temperature, humidity and pressure
Supply voltage 5 V DC
Interfaces I2C / SPI
Temperature -40 to +85 °C
Temperature accuracy ±1 °C
Relative humidity 0 to 100 % RH
Humidity accuracy ±3 % RH
Humidity response time 1 s
Atmospheric pressure 300 to 1100 hPa
Pressure accuracy ±1 hPa
I2C address 0x76 / 0x77
Compatibility Arduino, ESP32, ESP8266, Raspberry Pi
Approx. dimensions 15 × 12 mm

The sensor ranges and accuracy values are based on the Bosch BME280 specifications, while the power supply and dimensions refer to the 5 V module.

I2C Communication

In I2C mode, the module uses:

Pin Function
VCC Power supply
GND Ground
SDA I2C data
SCL I2C clock
SDO/ADDR I2C address selection
CS Interface selection

The I2C address can be set to 0x76 or 0x77, depending on the address pin state.

SPI Communication

The module also supports SPI communication using:

  • MOSI – data input
  • MISO – data output
  • SCK – clock
  • CS – chip select

The BME280 sensor supports 3-wire and 4-wire SPI, with speeds up to 10 MHz.

Applications

  • Weather stations
  • Temperature and humidity monitoring
  • Atmospheric pressure measurement
  • Altimeters
  • Home automation
  • Automation systems
  • Arduino
  • ESP32 / ESP8266
  • Raspberry Pi
  • IoT projects
  • Robotics
  • Environmental monitoring
