Capacitive Soil Humidity Sensor Module For Arduino - Keyestudio KS0510

: SEN06070
€3.90

This new type capacitive soil humidity sensor differs from other resistive sensors, adopting capacitive sensing principle to detect soil humidity.

The built-in chip supports 3.3~5.5V working environment, Arduino, ESP32, micro:bit and controller. As to mini PC, you need an ADC module (analog signals are converted into signals)

If you want to know more about this product, please check the Wiki Page.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description:

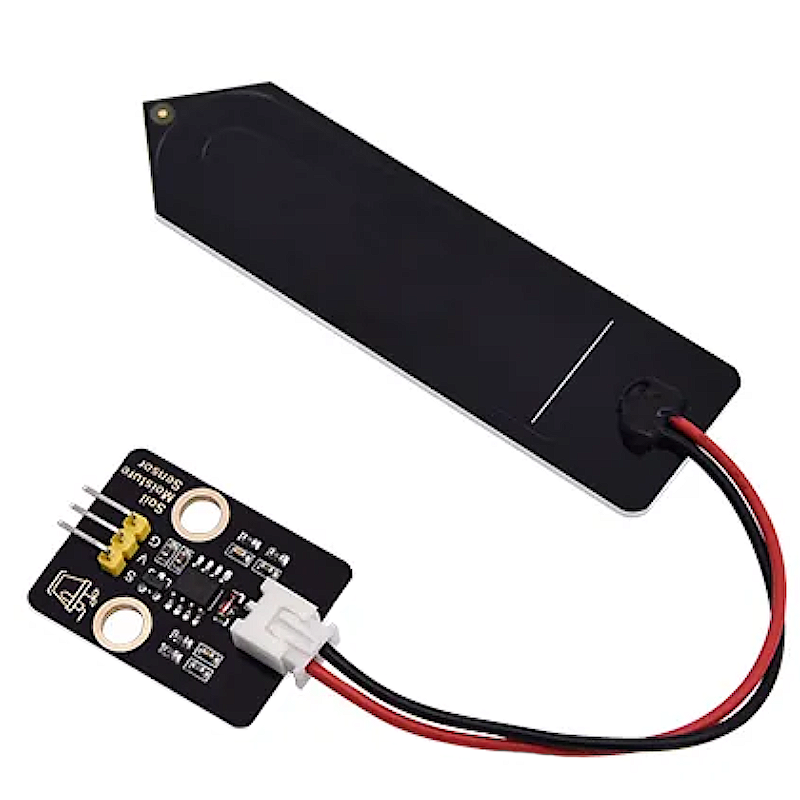

This new type capacitive soil humidity sensor differs from other resistive sensors, adopting capacitive sensing principle to detect soil humidity.

It is divided into the signal end and the detected end. When it is inserted into soil, the signal end will output analog value. The segmented the wire connection and casing pipe enhance its waterproof performance.

Since the circuit is not exposed at the detected end, the corrosion problem of sensor is avoided, extending life expectancy.

The built-in chip supports 3.3~5.5V working environment, Arduino, ESP32, micro:bit and controller. As to mini PC, you need an ADC module (analog signals are converted into signals)

  https://wiki.keyestudio.com/images/e/e1/0510-2.png



https://ueeshop.ly200-cdn.com/u_file/UPAH/UPAH808/2207/photo/e0db351505.jpg?x-oss-process=image/format,webp

format,webpformat,webpformat,webpformat,webpformat,webp



Parameters:

  1. Control chip: TLC555

  2. Communication interface: output analog value

  3. Rated voltage: 3.3 ~ 5.5 VDC

  4. Output voltage: 0 ~ 3.0 VDC

  5. Working current: <5mA

  6. Product size: signal end: 31.6mmx23.7mm

  7. Detection end: 23.8mm*83mm

  8. Operating temperature range: 1°C ~ 50°C



Documents:

Wiki Page

SEN06070
