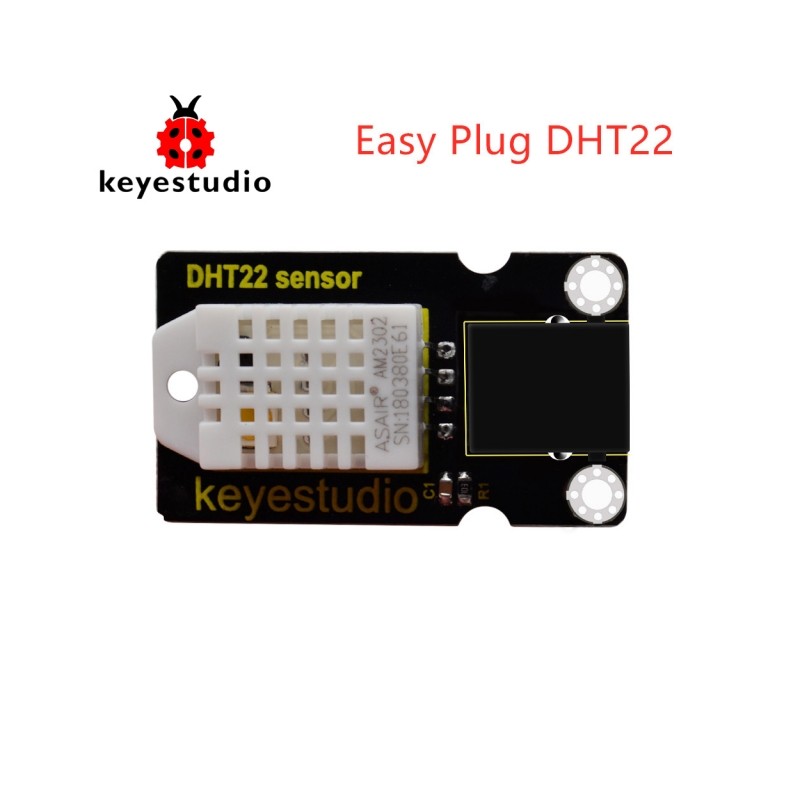

Temperature and Humidity Sensor DHT22 (AM2302) with RJ11 Easy Plug - Keyestudio KS0431

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Overview

This EASY plug DHT22 digital temperature and humidity sensor is a composite Sensor which contains a calibrated digital signal output of the temperature and humidity.

The dedicated digital modules collection technology and the temperature and humidity sensing technology are applied to ensure that the product has high reliability and excellent long-term stability.

Qualities of excellent quality, ultra-fast response, strong anti-interference, and high cost performance make it a wide applied application or even the most demanding one.

The sensor comes with 2 fixed holes, very easy to mount on any other devices.

For simple connection, the sensor has broken out the 4pins into a Crystal socket, so that you can direct connect the sensor to EASY plug control board using only an RJ11 cable for communication.

Applications: dehumidifier, testing and inspection equipment, consumer goods, automotive, automatic control, data loggers, weather stations, home appliances, humidity regulator, medical and other humidity measurement and control.

Specifications

Operating voltage: DC 3.3V-5V

Interface: EASY plug RJ11

Output signal: single-bus digital signal

lHumidity measurement range: 0----100%RH

Humidity measurement accuracy: ±2%RH

Temperature measurement range: - 40℃ to 80℃

Temperature measuring accuracy: ±0.5℃

Dimensions: 43mm * 26mm * 18mm

Weight: 9.3g
