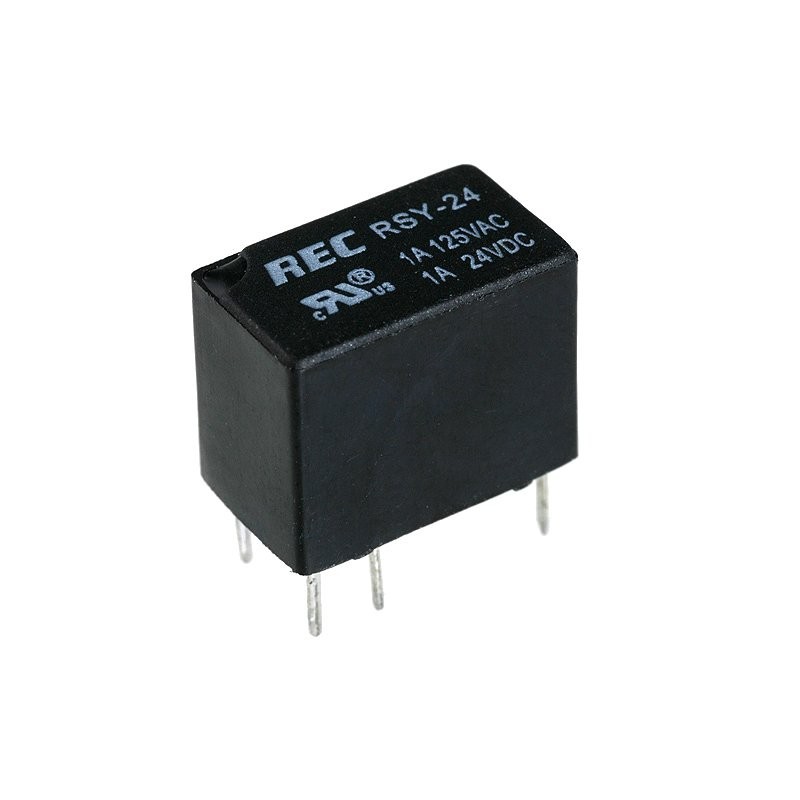

Electromagnetic Relay SPDT 24V DC
: CEL14002
€1.22
Relay ideal for designs where space matters!
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
Manufacturer | RAYEX ELECTRONICS | |
Type of relay | electromagnetic | |
Contacts configuration | SPDT | |
Rated coil voltage | 24V DC | |
AC contacts rating @R (at resistance load) |
0.5A / 125VAC | |
DC contacts rating @R (at resistance load) |
1A / 24VDC | |
Contact current max. | 1A | |
Switched voltage | max 125V AC, max 24V DC | |
Relay variant | subminiature | |
Mounting | PCB | |
Coil resistance | 3.84kΩ | |
Operate time | 4ms | |
Body dimensions | 12.4 x 7.4 x 9.9mm | |
Release time | 3ms | |
Operating temperature | -25...55°C | |
Relay series | RSY | |
Contact resistance | 100mΩ | |
Contact material | AgCdO | |
Terminal pitch | 2.54mm | |
Coil current | 6.25mA |
Datasheet: RSY Series
