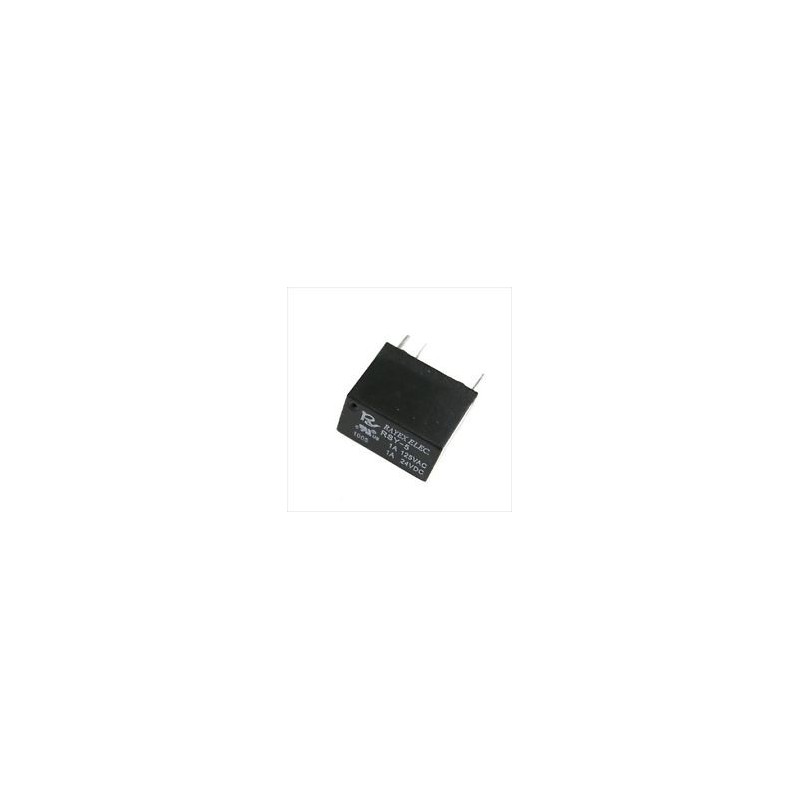

Electromagnetic Relay SPDT 5V DC

: CEL14000
€1.50
Tax included

Relay ideal for designs where space matters!

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Manufacturer RAYEX ELECTRONIC
Relay type electromagnetic
Contacts configuration  SPDT
Rated coil voltage 5V DC
AC contacts rating
(at resistance load)		 0.5 A / 125 VAC
DC contacts rating
(at resistance load)		 1 A / 24 VDC
Contact current max. 1A
Switched voltage max 24V DC, max 125V AC
Relay variant subminiature
Mounting PCB
Coil resistance 167Ω
Operate time 4ms
Body dimensions 12.4 x 7.4 x 9.9mm
Release time 3ms
Operating temperature -25...55°C
Relay series RSY
Contact resistance 100mΩ
Contact material AgCdO
Terminal pitch 2.54mm
Coil current 30mA



Datasheet: RSY Series
