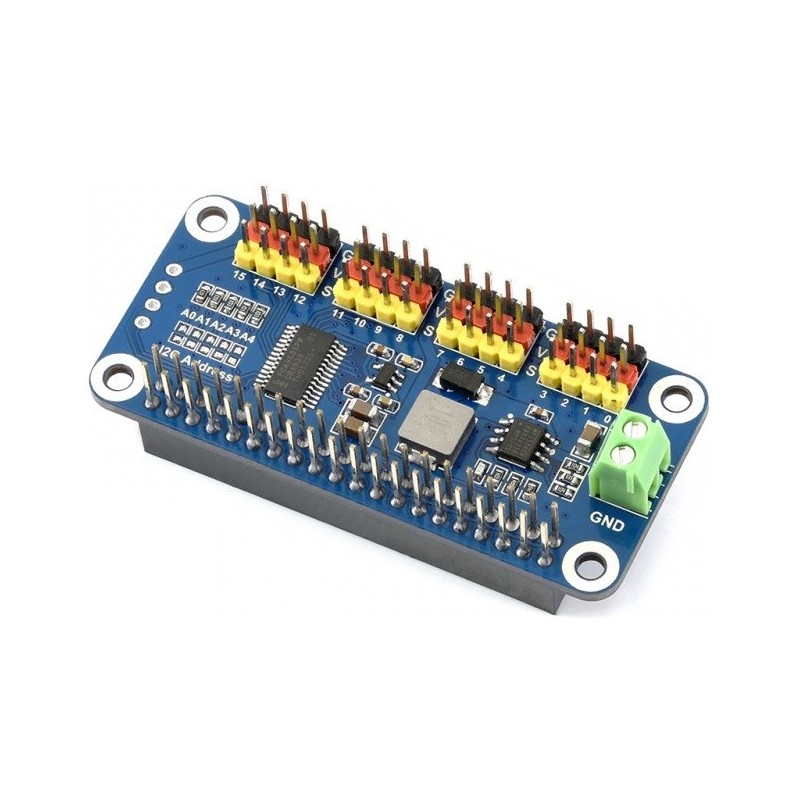

Servo Driver HAT for Raspberry Pi, 16-Channel, 12-bit, I2C

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Overview

Needless to say, the Raspberry Pi is powerful enough in most cases, yet it's not that good at providing precise PWM output. You may have tried to control a robotic arm or a hexapod walker by using the Pi, but finally get frustrated due to the limited number of PWM outputs and the jittering servo. Now you get a new option to bring your ideas to life, we prepare this useful Servo Driver HAT for you.

Features

• Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
• I2C controlled, using only 2 pins
• Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
• Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
• Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
• Reserved I2C control pins, allows to work with other control boards
• Comes with development resources and manual (examples in python like Bluetooth/WiFi remote control)

Specifications

• Power supply: 5V (Pi connector) OR 6V~12V (VIN terminal)
• Servo voltage: 5V
• Logic voltage: 3.3V
• Driver: PCA9685
• Control interface: I2C
• Dimension: 65mm x 30mm
• Mounting hole size: 3.0mm

Demo

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/Servo_Driver_HAT

Package Content

Weight: 0.017 kg

Note: Raspberry Pi and servo in the photos are NOT included.

1. Servo Driver HAT x1
2. RPi screws pack (2pcs) x1
