Raspberry Pi 8-ch Relay Expansion Board

:PCO01107
€19.95
Tax included

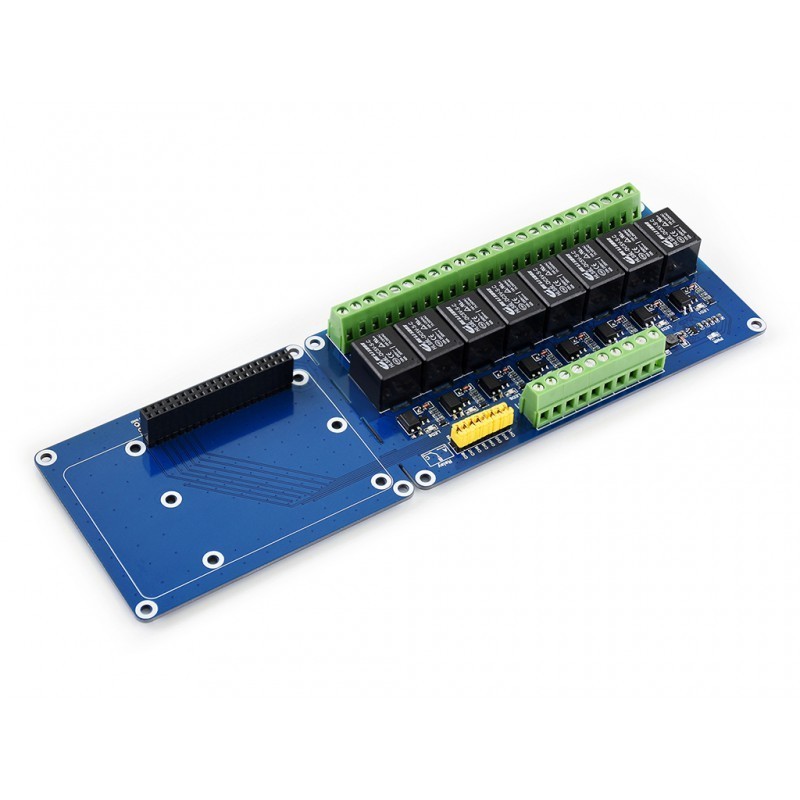

The RPi Relay Board (B) is an expansion board with 8-ch relays for Raspberry Pi. It gives your Pi the ability to control high voltage products such as home appliances

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

Overview

The RPi Relay Board (B) is an expansion board with 8-ch relays for Raspberry Pi. It gives your Pi the ability to control high voltage products such as home appliances.

Features

  • Supports Raspberry Pi A+/B+/2B/3B/3B+
  • High quality relays, loads up to 5A 250V AC or 5A 30V DC
  • Photo coupling isolation, prevent interference from high voltage circuit
  • Standard rail mount bottom case
  • Onboard LEDs for indicating relays status
  • Relay control pin selection jumper, allows to control the relays by custom pins other than the default pins
  • Reserved control Interface, allows to work with controllers like PLC
  • Comes with development resources, including examples in wiringPi, bcm2835, python, python-bottle (webpage control), and crontab (cron job)

Specifications

  • Power supply voltage: 5V
  • Trigger signal: 3.3V/5V
  • Relay channels: 8-ch
  • Contact form: SPDT-NO,NC
  • Closed current: 6mA (per channel)
  • Connector: screw terminal block
  • Dimension: 232 × 72 (mm)
  • Mounting hole size: 3.0mm

Dimensions

RPi Relay Board (B) dimensions

Development Resources

Wiki : www.waveshare.com/wiki/RPi_Relay_Board_(B)

Package Content

Weight: 0.275 kg

Note: Raspberry Pi in the photos is NOT included.

  1. RPi Relay Board (B) x1
  2. Rail mount bottom case x1
  3. Screws pack x1
