DIY Heart Shape breathing lamp kit - RED LEDS

: CEL03114
€3.17

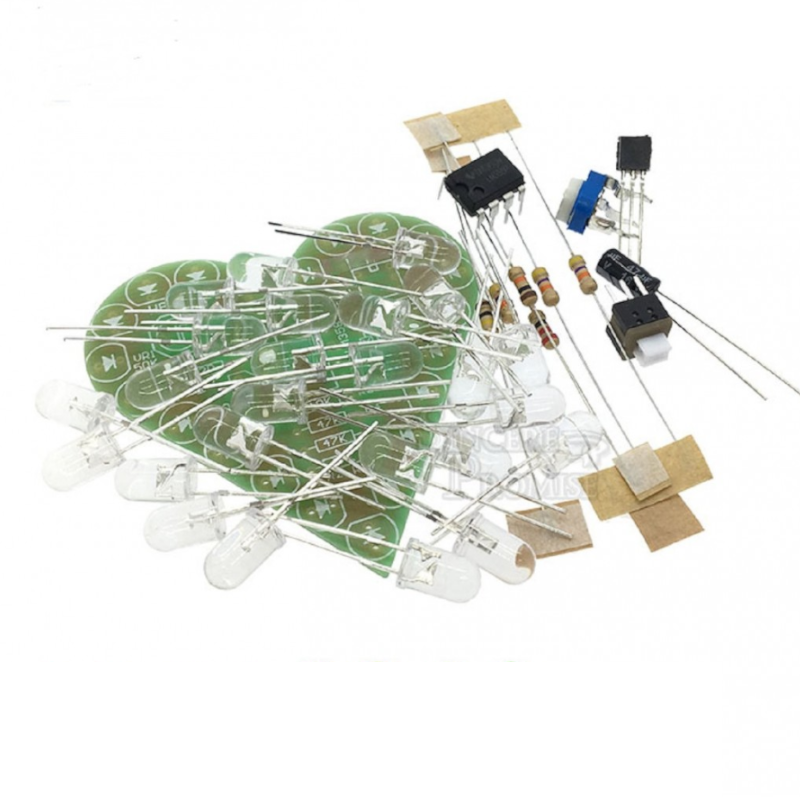

This electronics kit consists of a heart-shaped plate that you can solder yourself.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Parameters:

Parameters Value
Name Heart shape led
Operating voltage DC 4-6V
Difficulty of welding machine Easy
Circuit board size 50.7*50.7mm
Packing weight 13g/kit
Light color RED

Component List:

NO. Name Parameter QTY
R5 RES 22R 1
R6 RES 10K 1
R1.R2.R4 RES 47K 3
R3 RES 100K 1
C1 E-CAP 47UF 1
VR1 ADJ-RES 50K 1
U1 IC LM358 1
S1 Power switch 6P 1
Q1 Triode S8050 1
LED1-LED22 LED 5mm 22
—— PCB HBL-22 1
